EEA-PAM-553-D-32

Name: EEA-PAM-553-D-32
Brand: Vickers
Price: 497 USD
Availability: InStock
Rating: 4.5 (28 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Current response time:

4 Minutes 36 Seconds

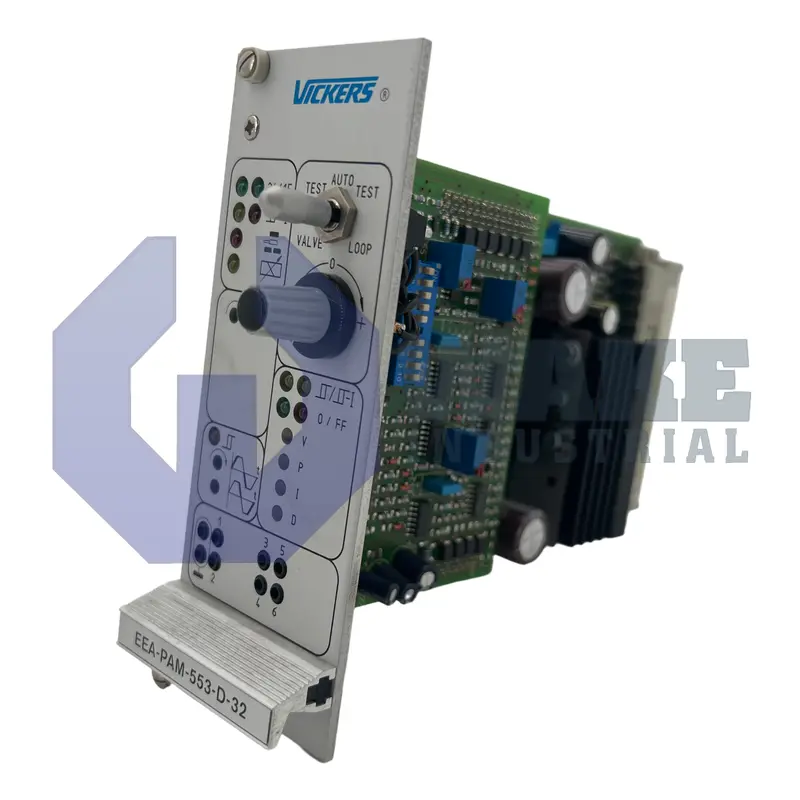

The Eaton Vickers EEA-PAM-553-D-32 power amplifier optimizes hydraulic control with ~10 V reference outputs and ~20 mA current input handling. It features configurable potentiometers for precise P-gain, I-gain, and D-gain adjustments.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Eaton Vickers is a leading manufacturer of hydraulic components and systems for industrial automation and mobile applications. Their product range includes valves, pumps, actuators, and power amplifiers designed for high precision and performance control.

The EEA-PAM-553-D-32 power amplifier from Eaton Vickers provides robust control for hydraulic proportional valves by enhancing system efficiency and response. It operates with a control output supply of + 15 V for LVDTs and features reference voltage outputs of ~ 10 V at 5 mA. Command inputs are supported through direct-voltage pins with an input impedance of 47 k?, accepting a voltage range of ~ 10 V. It also accommodates current input signals with a ~ 20 mA current range and 100 ? impedance for accurate control adjustments. The amplifier includes multiple inputs for feed-forward, sensors, and a ramp generator. Feed-forward input impedance is 6 k?, with a voltage range of ~ 10 V, while the ramp generator input impedance is 10 k?. Sensor inputs support both voltage and current signals, with a voltage range of 0 to ~ 10 V and current inputs ranging from 4 degrees CE" 20 mA. The PID controller enable voltage is between 17 and 40 V when enabled, or 0 to 3.5V when disabled, consuming less than 10 mA.

The EEA-PAM-553-D-32 power amplifier also includes configurable potentiometers for adjusting feed-forward, P-gain, I-gain, and D-gain ranges. This provides flexible control settings for different hydraulic systems. The model's Output signals are designed for short-circuit protection, with load impedance specifications for the PID-controller output, error signal, and feedback signal set to 10 k?. Additional features include digital outputs for sensor failure and feedback conditions, alarm outputs, and indicators for ramp activity and drive signal zero status.

EEA-PAM-553-D-32 Technical Specifications

Product Type:	Power Amplifier
Feed-Forward Input Voltage Range:	~ 10V
Type:	D
Analog Inputs Voltage Range:	~ 10V
Analog Inputs Input Impedance:	47 k?
Input to Ramp Generator Input Impedance:	10 k?
Input to Ramp Generator Voltage Range:	~ 10V
Control (Output) Supplies:	+15V for LVDTs only
Reference Voltages :	+10V x 5 mA
Feed-Forward Input Impedance :	6 k?

Frequently Asked Questions about EEA-PAM-553-D-32

Q: What are the command input options for the EEA-PAM-553-D-32 power amplifier?

A: The EEA-PAM-553-D-32 supports direct-voltage pins with a 47 k? impedance, accepting input voltages ranging from ~10 V. It also accommodates current input signals with a ~20 mA range for precise control.

Q: How does the EEA-PAM-553-D-32 handle sensor inputs?

A: This amplifier accepts both voltage and current sensor inputs, with voltage inputs ranging from 0 to ~10 V. Current inputs are supported within the 4-20 mA range, ensuring flexible system integration.

Q: What is the PID controller enable voltage for the EEA-PAM-553-D-32?

A: The PID controller enables between 17 and 40 V when active. When disabled, the enable voltage drops to 0-3.5 V, consuming less than 10 mA for energy efficiency.

Q: Does the EEA-PAM-553-D-32 provide short-circuit protection for output signals?

A: Yes, the EEA-PAM-553-D-32 features short-circuit protection for its output signals. It also has a minimum load impedance requirement of 10 k? for the PID controller, error, and feedback signals.

Q: What additional inputs are available in the EEA-PAM-553-D-32 for enhanced control?

A: The amplifier includes inputs for feed-forward control with a 6 k? impedance and a ~10 V range. It also supports ramp generator inputs with a 10 k? impedance for more dynamic adjustments.

Internal Product Review

‘‘The EEA-PAM-553-D-32 power amplifier is a robust solution for hydraulic systems. The model comes with support for ~ 20 mA current input, feed-forward control, and ramp generator inputs. Its short-circuit protection and adjustable PID controller enhance reliability that makes it the best choice for demanding automation applications.’’
