EEA-PAM-568-C-32

Name: EEA-PAM-568-C-32
Brand: Vickers
Price: 357 USD
Availability: InStock
Rating: 4.3 (16 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 3-5 Days

Current response time:

6 Minutes 31 Seconds

The Vickers EEA-PAM-568-C-32 power amplifier supports precision control with ±10 V output at 5 mA and quadrant detection for dual-direction motion control. Its four-input demand signal module enhances hydraulic operations.

Email

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Product Description

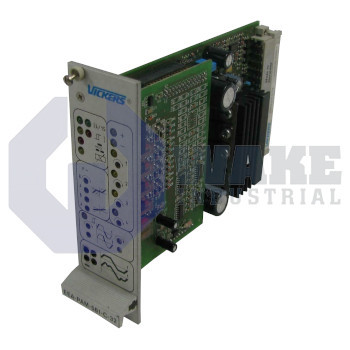

The EEA-PAM-568-C-32 power amplifier is a robust industrial automation solution designed to enhance control precision in hydraulic motion systems. This module is manufactured by Vickers. It integrates advanced input management and ramp functions for seamless performance in demanding applications.

The EEA-PAM-568-C-32 power amplifier is designed for use with KFDG5V-8 directional control valves for precision hydraulic applications. This amplifier unit includes a four input demand signal module alongside a ramp function generator that is capable of quadrant detection. This enables separate control of acceleration and deceleration for both motion directions. This model’s output voltage provides a precise range delivering + 10 V (± 1 %) at pin Z2 and – 10 V (± 1 %) at pin B2 each at 5 mA. This amplifier supports four adjustable ramp times to ensure that speed transitions align with operational needs. Logic inputs of this power amplifier enable versatile configurations with a switch on voltage range between + 10 V to + 40 V and switch off voltage below + 5 V. This model also features four pre set commands that are selectable via a 24 V logic signal. They simplifies control across various operational modes.

This EEA-PAM-5**-C-32 power amplifiers series unit’s polarity for the 10 V reference voltage is adjustable through a 24 V logic signal that adds flexibility in customization. This module’s 4 quadrant function generator further enhances motion control by offering fine adjustments for both acceleration and deceleration rates. The overall size of this power amplifier measures 175.24 mm (6.9 inches) in width, 128.4 mm (5.06 inches) in height and approximately 2.5 mm (0.1 inches) at the edge thickness. The amplifier excels in precision intensive industrial tasks.

EEA-PAM-568-C-32 Technical Specifications

Product Type:	Power Amplifier
Command Voltage Polarity Selection Input Impedance:	47 kΩ
Logic Inputs Switch-off Voltage:	<+5 V
Logic Inputs Input Current:	≤ 10 mA
Ambient Temperature Range:	0 to 50 degree centigrade
Storage Temperature Range:	-25 to +85 degree centigrade
Edge Connectors:	F48 Male Type
Control (Output) Supplies:	+15V for LVDTs only
Command Signal Inputs Voltage Range:	± 10 V
Command Signal Inputs Input Impedance:	47 kΩ
Drive Signal Zero Indicator Output Resistance:	50 Ω
Drive Signal Zero Indicator Drive Active:	0 ± 2V
Ramp Active Indicator Output Resistance:	10 kΩ
Mass:	0.4 kg
Command Voltage Source:	± 10 V

Frequently Asked Questions about EEA-PAM-568-C-32

Q: How does the EEA-PAM-568-C-32 manage precise motion control?

A: The EEA-PAM-568-C-32 amplifier features a 4-quadrant function generator. It enables independent control of acceleration and deceleration in both motion directions. This ensures smooth performance in complex hydraulic applications.

Q: How does the EEA-PAM-568-C-32 ensure stable voltage output?

A: The amplifier provides a precise ±10 V output with ±1% accuracy. Pin Z2 outputs +10 V, while pin B2 outputs -10 V at 5 mA. This ensures consistent voltage levels.

Q: How adjustable is the reference voltage in the EEA-PAM-568-C-32?

A: This unit offers a 24 V logic-controlled reference voltage adjustment. It provides flexibility to align with various operational requirements. This improves control versatility during demanding automation tasks.

Q: What are the logic input specifications for the EEA-PAM-568-C-32?

A: The amplifier supports switch-on voltages between +10 V and +40 V. It switches off below +5 V. This range allows seamless adaptation to different control signals.

Q: Can the EEA-PAM-568-C-32 support flexible signal demands?

A: Yes, this model integrates a four-input demand signal module. It allows precise input management for complex operational configurations. This enhances customization for high-precision hydraulic control needs.

Internal Product Review

‘‘The EEA-PAM-568-C-32 by Vickers offers exceptional control precision. This model comes with four adjustable ramp times and ±10 V output for fine-tuned hydraulic motion. Its 4-quadrant function generator, 24 V logic configuration, and robust directional valve compatibility make it an ideal choice.’’
