EEA-PAM-523-A-32

Name: EEA-PAM-523-A-32
Brand: Vickers
Price: 262 USD
Availability: InStock
Rating: 4.5 (31 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Call for Expedited Shipping and Product Condition Options

The model eea-pam-523-a-32 features a nominal 24V DC power supply, 50 W output, and protection against reverse polarity. It has a gain adjustment range of 2.5 to 10% per volt per direction.

Preparing your secure checkout page...

Warranty

Wake Industrial Warranty

Shipping

Payment

Surplus

Have a EEA-PAM-523-A-32 to sell?

To Speak to a sales representative for pricing and lead time:

Phone

1-888-551-3082

International

1-919-443-0207

sales@wakeindustrial.com

Description
Revisions
Specs
FAQ

Product Description

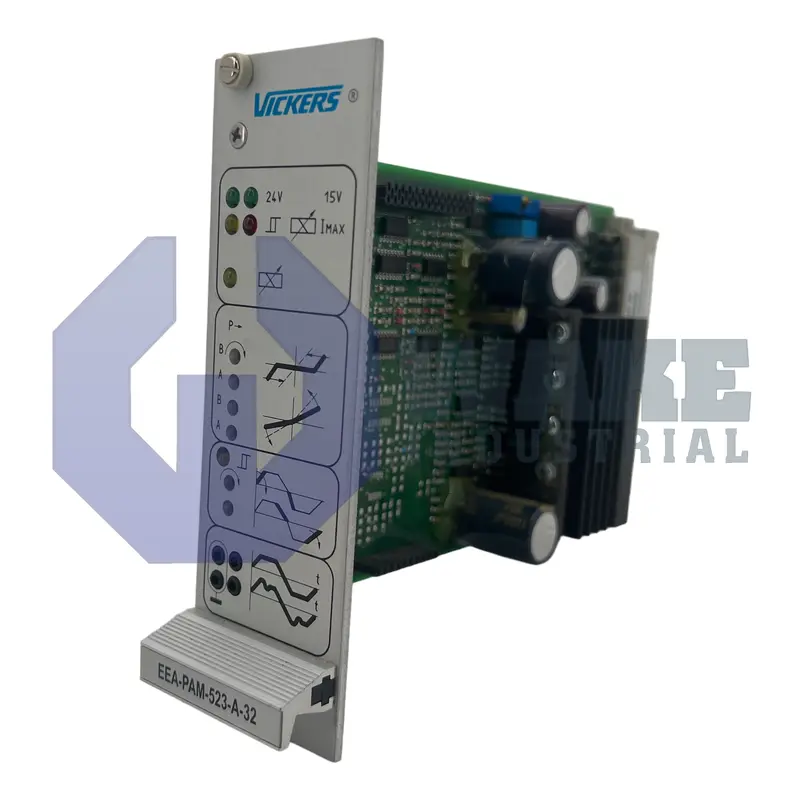

The model eea-pam-523-a-32 is a power amplifier card designed to control hydraulic solenoid valves. It operates with a maximum solenoid current of 1.6 A and has an amplifier input current of 0.3 A at 0 V command signal (MP1).

The model is powered by a nominal 24V DC power supply with a power output of 50 W, ensuring efficient and stable operation. The voltage range for the power supply is between 20 V and 40 V, with protection against reverse polarity. The signal sources for the EEA-PAM-523 amplifier card include ?15 V and ?10 V options, accommodating a variety of control signals with maximum peak-to-peak ripple specifications of 50 mV and 20 mV, respectively. The card features a deadband compensation adjustment per direction of 0 to 50 % of the maximum spool stroke from the centered position allowing for precise control and minimizing dead zones in valve operation. The model accepts command inputs in both voltage and current forms. It supports direct and inverting voltage inputs ranging from 0 to ?10 V and current inputs from 0 to ?20 mA. The input impedance is set at 47 k for voltage and 100 for current. The EEA-PAM series amplifier card includes factory-set dither and gain adjustments, with a gain adjustment range per direction of 2.5 to 10% per volt.

The card eea-pam-523-a-32 also offers short-circuit protection for all outputs. The model?s temperature drift is minimized to less than 1 mV/?C, ensuring stable performance across a wide operating temperature range of 0 to 50?C (32 to 122?F). The factory setting for ramp-time adjustment is approximately 50 ms, with adjustable ranges from 50 ms to 5 s. Wake Industrial has this product in stock.

EEA-PAM-523-A-32 Technical Specifications

Nominal Power Supply:	24 V DC
Ramps Input:	22 kohms
Amplifier Shut-down:	<18 V DC
Max. Solenoid Current:	1.7 A
Overload Detection:	Automatic reset
Weight:	330 g
Protection:	Reverse-polarity
Output Monitor Point Output:	10 kohms short-circuit protected
Ramp-active Indicator Output:	10 kohms
Command Signal Monitor Point Output:	10 kohms short-circuit protected

Frequently Asked Questions about EEA-PAM-523-A-32

Q: What is the maximum solenoid current for the EEA-PAM-523-A-32?

A: The maximum solenoid current is 1.6 A. This allows for precise control of hydraulic solenoid valves.

Q: What power supply range does the EEA-PAM-523-A-32 support?

A: The model supports a power supply range of 20 V to 40 V DC. It includes protection against reverse polarity.

Q: What types of signal sources are compatible with the EEA-PAM-523-A-32?

A: The amplifier card accepts ?15 V and ?10 V signal sources. This accommodates a variety of control signals.

Q: How does the EEA-PAM-523-A-32 handle deadband compensation?

A: The card allows deadband compensation adjustment from 0 to 50%. This ensures precise valve control.

Q: What are the temperature specifications for the EEA-PAM-523-A-32?

A: The operating temperature range is 0 to 50?C (32 to 122?F). Temperature drift is minimized to less than 1 mV/?C.

Internal Product Review

‘‘The model eea-pam-523-a-32 is a power amplifier card for hydraulic solenoid valves. The model supports ?15 V and ?10 V control signals and offers deadband compensation from 0 to 50% per direction. The model features factory-set dither and gain adjustments.’’
