SCE900 Series Servo Drive manufactured by Pacific Scientific. This Servo Drive features a Input Voltage of 90-264 VAC, 47-63 Hz single-phase along with a Customization Code of Factory Assigned.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

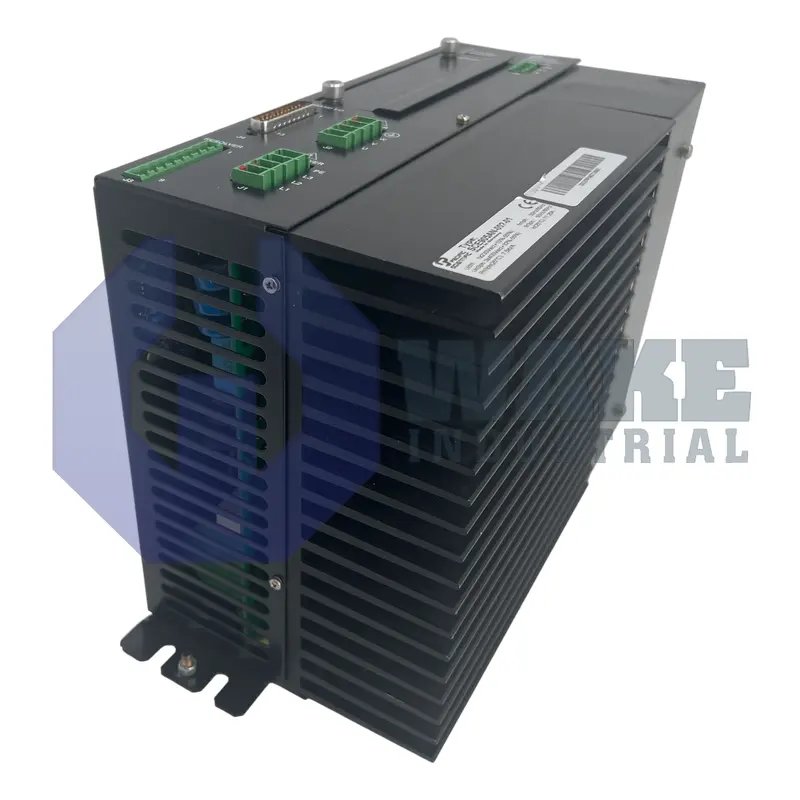

The SCE905AN-002-01 is a high performance, medium power single axis servo drive that is designed to be coupled with brushless, 3-phase permanent magnet motors. The SCE905AN-002-01, along with other drives in the series, have very similar interfaces. These drives possess a similar control interface and the power electronics are compatible with U.S. 480 VAC lines as well as European 400 VAC 3-phase mains.

This drive has many useful features. This includes a completely digital DSP-based control with current loops and digital auto-tuning to aid in easy and predictable set-up. The unit also has system and application parameters set within its software. Additionally, the servo drive contains a Digital Resolver to Digital Converter that has a 24-bit position resolution. The drive also features Advanced Signature Series sinusoidal current control in order to support low shaft torque ripple as well as uniform control dynamics at various speeds. Moreover, the SCE905AN-002-01 possesses a modular construction along with a user removable option card that allows for easy configuration.

Option cards are available with the SCE905AN-002-01. These option cards expand the functionality of the servo drive and allow the user to adjust the unit to different parameters. The unit is delivered without being configured. To configure the servo drive, the user must first set the correct parameters. These parameter settings are stored within the unit’s EEPROM memory or within the option card. The EEPROM can support a minimum of 100,000 writes. On average, 1,000,000 writes can be supported by the EEPROM. In order to prevent un-authorized alterations of the drive’s parameters or personality, an option card can be removed after the parameters are set within the base of the servo drive.

SCE905AN-002-01 Technical Specifications

Servo Drive Family:	SCE9
Power stage efficiency:	97%
Command Interface Option Card:	No option card installed, No communications/setup interface Analog or Incremental Digital Command
Power Level:	15.9 A continuous at 25 degrees C, 31.8 A peak (convection cooling) 15.9 A continuous at 50 degrees C, 31.8 A peak (forced air cooling)
Accessories and Cooling Option:	No fan, convection cooled
Customization Code:	Factory Assigned
Firmware:	Standard
Input Voltage:	90-264 VAC, 47-63 Hz single-phase
Continuous output current :	19.9A
Peak Output current:	31.8A

Frequently Asked Questions about SCE905AN-002-01

Q: Does the SCE905AN-002-01 servo controller require an isolation transformer?

A: The SCE905AN-002-01 servo controller is capable of direct line operation. Unlike convectional controllers, it is fully isolated and does not require external isolation transformer. Also, he inrush current on the conection on the line is internally limited to a safe level for the drive.

Q: Can the SCE905AN-002-01 be installed outside a cabinet?

A: To ensure the optimum protection of the SCE905AN-002-01 servo controller, it should be installed in an additional control cabinet on a flast solid and electrically conductive mounting surface.

Q: What type of AC line should be used with the SCE905AN-002-01 servo controller?

A: The SCE905AN-002-01 is functionally compatible with the grounded neutral WYE, open-deltal gorunded leg and the TEE. However the internal CE EMI filter of the controller is optimized for the grounded nutral WYE AC lines that are standard in Europe.

Q: How can operators monitor the operational status of the SCE905AN-002-01 servo controller in real time.

A: The SCE905AN-002-01 servo controller features a 7-segment Light Emitting diode which is visible on the front panel. These diodes indicates the operational status of the controller and can be used to monitor the operation of the controller by operators.
