M22NSXA-JDN-HD-02

  • Rated 4.5 (22 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships in 3 Days

Current response time:

3 Minutes 23 Seconds

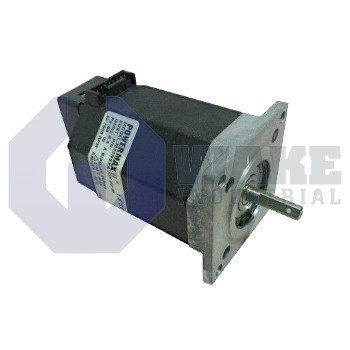

The M22NSXA-JDN-HD-02 by Pacific Scientific is part of the PowerMax II M Motor Series. The M22NSXA-JDN-HD-02 is a NEMA mounting motor featuring a holding torque of 1.26 Nm and a rated current of 4.6 Amps DC. It also holds a phase resistance of 0.38 ohms +/- 10% and phase inductance of 1.5 mH Typical.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

If you are looking for a robust and powerful step motor for your plant, then Pacific Scientific can give you the exact solution for your requirements. Having made a name for itself in the power equipment sector, the POWERMAX II Hybrid Step-Motors have a wide variety to choose from. Their M Series motors are renowned for their high output and user-friendly design.

The M22NSXA-JDN-HD-02 belongs to this M series of hybrid motors. It's NEMA Mounting confirming to the Size of NEMA 23 frame makes it one of the smallest hybrid step motors in its class producing a very high torque. Its characteristic high torque to weight ratio makes it preferred choice for many applications where the holding torque range is between 161 to 253 Mm. The shaft diameter of a NEMA 23 stepper can withstand very high axial and radial loads.

The M22NSXA-JDN-HD-02 displays some common features of the M Series hybrids, like the Double/Smooth Shaft Configuration & Shaft Modification, and provision of a Receptacle for Termination. Its Winding is factory-assigned depending upon the user preference and indicated by the given letter in the nomenclature.

The M22NSXA-JDN-HD-02 has a special low inertia rotor and an encoder option of 500 ppr. The High quality of magnets and windings ensure that the flux is completely focused on the stator and converts it to motion giving optimum power since there are minimal losses in flux giving rise to high torque.

When you select the M22NSXA-JDN-HD-02, you are assured of the high quality and reliability that comes with the brand name of Pacific Scientific. The high quality of workmanship and materials used is irrefutable and its Sigmax technology assures you of the design features that make them the most powerful steppers available today.

  • M22 NSXA JDN HD 02
  • M22-NSXA-JDN-HD-02
  • M22NSXA JDN HD 02
  • M22NSXA-JDN-HD-O2
  • M22NSXAJDNHD02
  • M22NSXAJDN-HD-02

M22NSXA-JDN-HD-02 Technical Specifications

:
Detent Torque : 0.12 Nm
Holding Torque: 1.26 Nm
Phase Inductance: 1.5 mH Typical
Phase Resistance : 0.38 ohms +/- 10%
Rated Current/ Phase: 4.6 Amps DC
Thermal Resistance: 4.5 Mounted degree Celsius/ Watt
