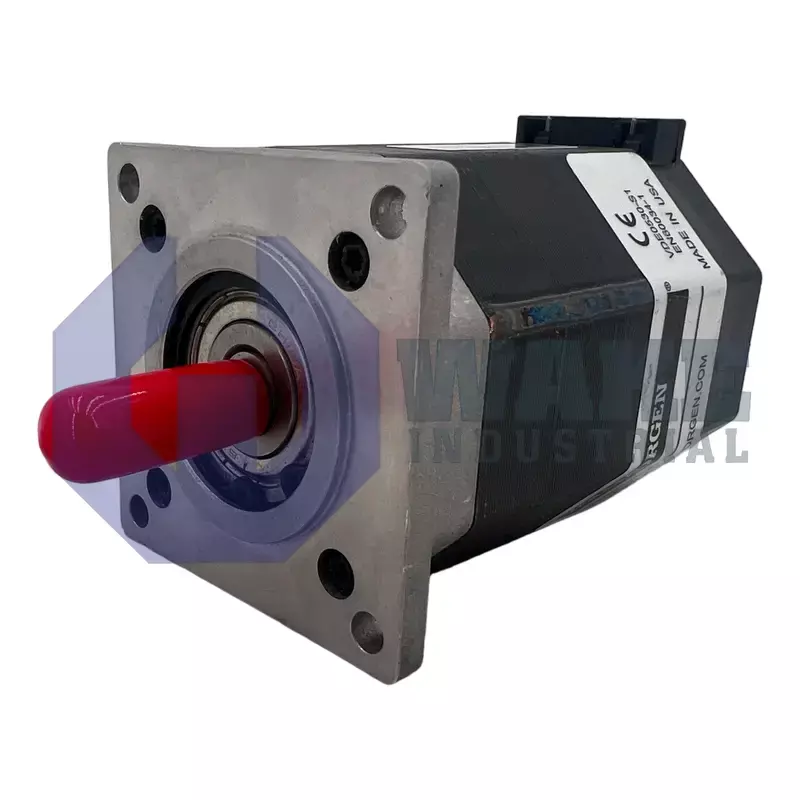

M22NRXD-LNN-NS-00

Name: M22NRXD-LNN-NS-00
Brand: Pacific Scientific
Price: 189 USD
Rating: 4.4 (13 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

Current response time:

3 Minutes 50 Seconds

The M22NRXD-LNN-NS-00 by Pacific Scientific is part of the PowerMax II M Motor Series. The M22NRXD-LNN-NS-00 is a NEMA mounting motor featuring a holding torque of 1.68 Nm and a rated current of 1.77 Amps DC. It also holds a phase resistance of 4.88 ohms +/- 10% and phase inductance of 5.0 mH Typical.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The M22NRXD-LNN-NS-00 is a Pacific Scientific product, a company which is synonymous with manufacturing the well-known series of POWERMAX II Hybrid Step-Motors.

The POWERMAX II® HYBRID MOTOR TECHNOLOGY patented by Pacific Scientific is one the most cost-effective and boasts of a variety of high-performance hybrid step motors. The NEMA 23 frame size used for mounting makes it small in size and yet, due to some innovative technology tweaks, the motors produce greater torques than other contemporary motors in the same class. All the M series step motors feature the NEMA 23 standard Mounting and have a very high torque to weight ratio.

The torque to weight ratio of M22NRXD-LNN-NS-00 is accordingly very high and it also has some very interesting design features like the Samarium-cobalt magnets that are instrumental in optimizing the magnetic flux by concentrating it at focal points along the stator.

The most outstanding advantage of POWERMAX II M22NRXD-LNN-NS-00 step motor is that you can carry out a great amount of customization. This would enable you to work out the best combination of standard characteristics like the inertia, acceleration, and torque. This is because of the features like Single flat type of Shaft that lends itself to modifications. It has two stacks, a Factory Assigned Windings type, a Receptacle for Termination, and a standard rotor design.

The Patented Sigmax® technology in M22NRXD-LNN-NS-00 helps in redirecting the generated magnetic flux in such a manner that it inhibits leakage significantly, thus optimizes the torque production. Its Rare earth magnetic Stator inserts the Focusing flux in a concentrated manner on the torque producing flux Rotor. This results in an output high acceleration and its signature high torque.

M22NRXD-LNN-NS-00 Technical Specifications

Frame size:	NEMA 23 standard mounting
Connection:	Through connector pins
Magnet type:	Samarium-cobalt magnets
Technology:	POWERMAX II® Hybrid Motor Technology
Step angle:	1.8 degrees
Housing:	Metallic
Cooling type:	Convection
Alllowable installation height:	1000 meters above sea level
Mounting:	Using 4 through holes
Warranty:	1 year

Frequently Asked Questions about M22NRXD-LNN-NS-00

Q: What sets the model M22NRXD-LNN-NS-00 apart in terms of technology and performance?

A: The model's specially designed Samarium-cobalt magnets sets the model apart from others, providing exceptional value in various applications.

Q: How does the NEMA 23 frame size of the M22NRXD-LNN-NS-00 contribute to its performance despite its smaller size?

A: Despite its smaller size, the NEMA 23 frame size used for mounting enables innovative technology tweaks in the M22NRXD-LNN-NS-00 motors. This optimization results in the motors producing greater torques compared to other contemporary motors in the same class, despite their compact build.

Q: What role do Samarium-cobalt magnets play in enhancing the M22NRXD-LNN-NS-00's efficiency?

A: Samarium-cobalt magnets in the M22NRXD-LNN-NS-00 serve a crucial role in optimizing magnetic flux by concentrating it at focal points along the stator. This design choice significantly enhances the motor's efficiency.

Q: What customization options are available for the M22NRXD-LNN-NS-00 stepper motor, and how do they impact its characteristics like inertia, acceleration, and torque?

A: The M22NRXD-LNN-NS-00 offers extensive customization possibilities, allowing for tailored adjustments of characteristics such as inertia, acceleration, and torque. Features like the single flat shaft enable modifications, providing flexibility in meeting specific performance requirements.

Q: Could you elaborate on the design features in this M22NRXD-LNN-NS-00 model?

A: The M22NRXD-LNN-NS-00 boasts a single flat shaft, two stacks, factory-assigned windings, and a termination receptacle. These features collectively contribute to the motor's adaptability for customization, ease of integration, and standardized design.
