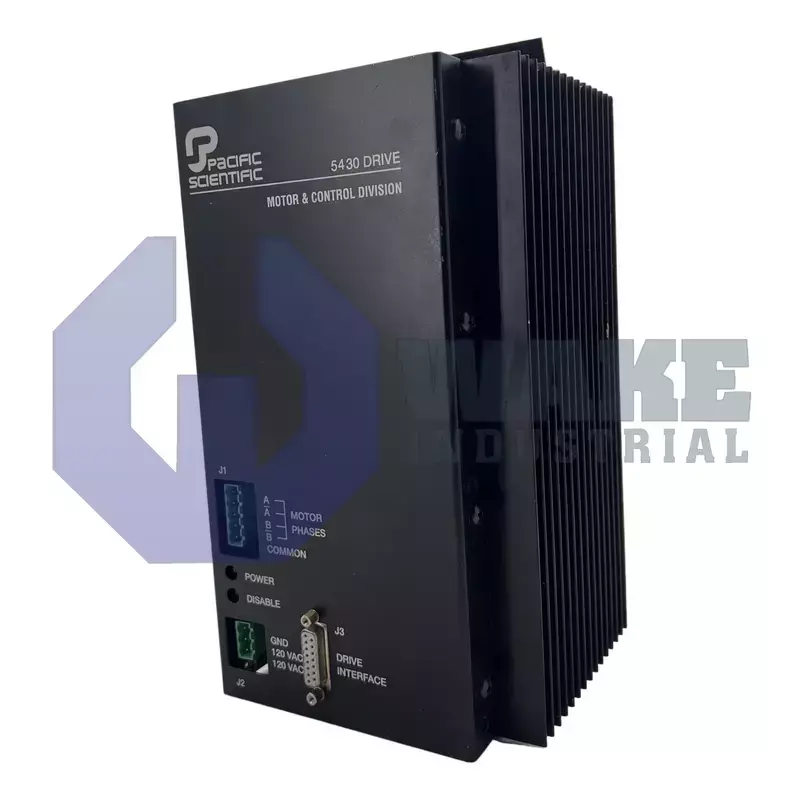

The Pacific Scientific 5430 Stepper Motor Drive offers precision control with selectable micro-stepping up to 1/125th of a step and current boost at higher step rates. It operates at 120 VAC.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Pacific Scientific is a manufacturer known for producing reliable and high-performance motion control products. Their product line includes servo motors, stepper motors, drives, and controls. One of their widely used products is the 5430 Stepper Motor Drive which provides precision and versatility in industrial automation applications.

The 5430 stepper motor drive operates with an input voltage of 120 VAC at 60 Hz and has an input current limit of 5 Amps RMS. It utilizes a two-phase bipolar chopper drive circuit that is current regulated with a nominal bus voltage of 65 Volts. For protection, it includes MDA 6 fuses on both 120 VAC input lines. The drive offers micro-stepping capabilities and current boost at step rates above 500 full steps per second that allows for enhanced control over the motor's operation. Its step size is selectable via DIP switches and ranges from full step to 1/125th of a step. In terms of current, the 5000 series drive supports a full step current of 5.0 Amps ~ 0.1 Amp and micro-stepping at 3.5 Amps ~ 0.1 Amp, with a boost function providing 5.0 Amps ~ 0.1 Amp under specific conditions. With an optoisolator power input range of 5 to 30 VDC and a maximum power dissipation of approximately 40 watts, the drive is designed for both efficiency and protection against overheating and short circuits.

The 5430 stepper motor drive is equipped with an Idle Current Reduction (ICR) feature which automatically cuts motor current by 50 % during idle periods that reduces heat and conserves energy. The ICR activates one second after the last pulse and restores the full current during the next step. The drive is also protected against short circuits and overheating, and it includes a translator circuit for handling step and direction inputs.

5430 Technical Specifications

Manufacturer:	Pacific Scientific
Ramp Time:	50 ms minimum
Series:	5000 Series
Product Type:	Stepper Motor Drive
Input Voltgae:	120 VAC
Frequency:	60 Hz
Input Current:	5 A max.
Fuse:	MDA 6 on both 120 V Lines
Drive Circuit:	Two Phase Bipolar
Bus Voltage:	65 V

Frequently Asked Questions about 5430

Q: What is the input voltage requirement for the Pacific Scientific 5430 Stepper Motor Drive?

A: The 5430 Stepper Motor Drive operates with an input voltage of 120 VAC at 60 Hz. It has an input current limit of 5 Amps RMS for reliable performance.

Q: How does the 5430 model handle micro-stepping?

A: The 5430 Stepper Motor Drive supports micro-stepping with selectable step sizes ranging from full step to 1/125th of a step. This feature allows for precise motor control in automation applications.

Q: What protection mechanisms are included in the Pacific Scientific 5430 Stepper Motor Drive?

A: The 5430 model includes MDA 6 fuses on both 120 VAC input lines for protection. It also features safeguards against short circuits and overheating, ensuring the system operates safely.

Q: What is the purpose of the Idle Current Reduction (ICR) feature in the 5430 model?

A: The Idle Current Reduction feature cuts motor current by 50% during idle periods to reduce heat and conserve energy. It activates after one second of inactivity and restores full current during the next step.

Q: What are the connectivity options for the 5430 Stepper Motor Drive?

A: The 5430 model is equipped with an optoisolator power input range of 5 to 30 VDC. It also features a translator circuit to handle step and direction inputs, enhancing connectivity.

Internal Product Review

‘‘The Pacific Scientific 5430 Stepper Motor Drive stands out for its precise micro-stepping capabilities, current boost function, and protection features. The model also includes short circuit and overheating safeguards. The model comes with a nominal bus voltage of 65V and Idle Current Reduction function.’’
