Home Pacific Scientific 5000 Series 5230

5230

Name: 5230
Brand: Pacific Scientific
Price: 373 USD
Availability: InStock
Rating: 4.5 (25 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships in 3 Days

Current response time:

4 Minutes 48 Seconds

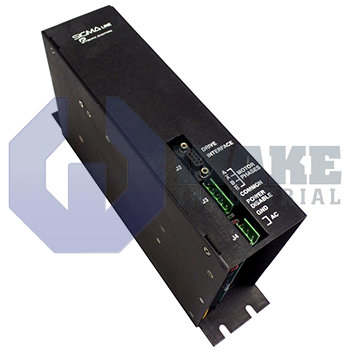

5000 Series Stepper Motor Drive manufactured by Pacific Scientific. This Stepper Motor Drive features a Functionality & Drive Configuration of Integral power supply and a Power Level of 2.5 A rms, 35 Vdc with integral power supply, 12 - 40 Vdc with user provided power supply.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The 5230 Stepper motor drive is one of the Pacific Scientifics’ 5000-Series stepper motor drive and is meant to provide an intelligent motion control system for ensuring reliability, high performance, and an effective software control by making it easily configurable and accessible at the motherboard level. It has usability for the arrangement of essential power supply requirement of 2.5 Amperes RMS, DC voltage of 35 V with basic power supply, and of 12 to 40 Volts dc amidst user-provided supply.

The 5230 drivers are needed for handling the operational values of the drive and are utilized to convert the various values of power in the inputs. Produced by the famous name of Pacific Scientific it is an example of their well researched, user-ready plus intelligent software using mnemonics arrangements for control. These drivers provide board-level units for higher functionality as well as drive configuration which makes them an essential component for the effective running of these conventional two-phase bipolar motors.

These 5230 modular drivers are based on intuitive design features and are TTL/CMOS compatible with features that support a wide range of input current values. It has excellent solid-state components and many other innovative characteristics like over-temperature protection. It also has an SCR latch provided internally, that serves as a protection against short circuit. This driver is based upon mnemonic programming language and is fairly easy to configure and use. Pacific Scientific denotes excellence and dependability. Like all their equipment, the 5230 drivers too are created to the highest of industry standards. Utilized mainly for stepper motor drives it goes equally well with other comparable devices and using its smart motion systems capability, can help in controlling them efficiently.

5230 Technical Specifications

Drive Type:	Stepper Drive (5000)
Power Level:	2.5 A rms, 35 Vdc with integral power supply, 12 - 40 Vdc with user provided power supply
Functionality & Drive Configuration:	Integral power supply
Chopping frequency:	17 kHz nominal
Rated current:	2.5 A
Rated voltage:	35 V DC with 115 V AC inpint
Step size:	Full or half step jumper selectable
Max step input:	20 kHz
Operating temperature:	0 to 50 degrees celsius

Frequently Asked Questions about 5230

Q: What are the main features of the 5230 Stepper Motor Drive?

A: This model offers precise motion control with high reliability. In addition, the motor is highly configurable and has easy configuration. The drive also has efficient power supply management and can support a range of input values.

Q: Can this model increase the drive control efficiency?

A: The 5230 Stepper Motor Drive can be used with other comparable devices for precise motion control tasks and ensures efficient drive control because of its smart motion control technology.

Q: What are the advantages of this system's TTL/CMOS compatbility?

A: This capability ensures seamless integration with a wide range of control systems. This ensures simplified connection process and allows communication between the system and driver components.

Q: Can the motor be used for both unipolar and bipolar motors?

A: The 5230 driver is mainly designed with two-phase bipolar motors. For best performance, it is recommended that the motor only be used with two-phase bipolar motors.

Q: How does this model handle power supply requirements?

A: The 5230 Stepper Motor Drive can efficiently manage power supply requirements and can operate within a range of 12 to 40 volts. Because of this flexibility, the motor is compatible with various power sources.
