MIV0102-1-B1

Product Description

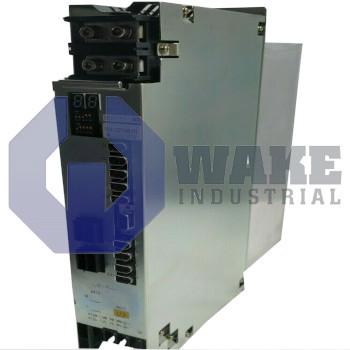

The Okuma MIV0102-1-B1 is a 2-axis inverter that can control two motors. It is part of Okuma Motion Control systems and requires DC input at 300 Volts DC. More than one inverter can be connected to an Okuma power supply. The input rating of power supplies is 200 Volts AC. The line side power rating of the MIV0102-1-B1 is 1 kilowatt. The motor side power rating of the inverter is 2 kilowatts. The MIV0102-1-B1 is designed for control of motors that belongs to the PREX and BL product lines. The components of each MIV inverter include a control board, a power board, a heat sink and the cover of the unit. The power control board on the MIV0102-1-B1 is ICB1. The type of the control ROM on the unit is 1. The unit mounts vertically and weighs approximately 6.3 kilograms.

Dimensions of the MIV0102-1-B1 inverter are: 380 millimeters height, 60 millimeters width and 325 millimeters depth. The inverter communicates with other control units through the servo link, converter link and encoder link. Each control device on the communication network is allotted a controller ID number. Okuma has provided two 5-bit switches on the front panel of the MIV0102-1-B1 inverter for setting the controller ID. Both the line side and motor side switches need to be set for the MIV0102-1-B1 inverter unit. A LED display on the front of the device displays operating states. An error umber is displayed in case of a device error. This enables identification of the cause of the error and makes troubleshooting easier. The inverter unit and associated equipment should only be handled by trained and qualified personnel who possess the relevant experience.
