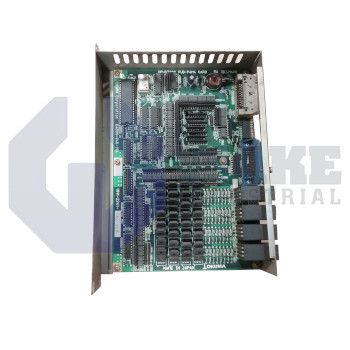

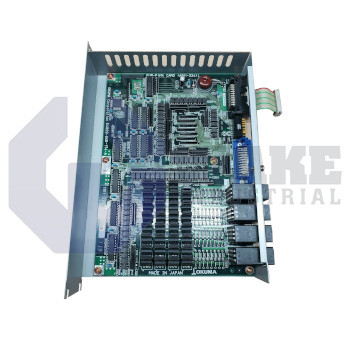

E4809-045-174

Product Description

The E4809-045-174 is a main circuit board designed by the reputable Rexroth Indramat to serve as a communication platform in the OPUS 7000 FUB-P4M4 main unit. The circuit board is designed to be flexible in operation; it maintains an operational efficiency as high as 90 percent under normal operating conditions. This main circuit board also serves as an interface through which important input and output connections necessary for the operation of the drive controller can be made. Although this circuit board is manufactured according to the IP00 protection class, its unique structure necessitates its integration into the main unit that offers it optimum protection and allows it to operate smoothly in adverse industrial conditions. The E4809-045-174 does not generate any noise during operation; this makes it possible to be operated at any time of the day without causing any significant noise disturbance to the environment.

The E4809-045-174 main circuit board has a total weight of about 0.45 kilograms; it also requires a rated input current of about 45 amperes. The electrical components that connect to the main circuit board can generate a leakage current of about 3.5 milliamperes. To prevent electrical accidents, all devices containing this circuit board should be properly grounded before being switched on for operation.

Also, to maintain the integrity of this circuit board, it should be ensured that only persons who are familiar with Rexroth Indramat products and have gone through the user manual of the circuit board should be allowed to handle the configuration and installation of this circuit board. The E4809-045-174 is made from environmentally friendly materials and can safely be disposed of when it is no longer required for operation.
