Product Description

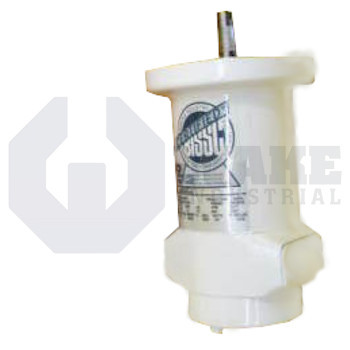

The STF5372-3750-61-82BC-CU DC motor from Kollmorgen finds its place among the environmentally protected STF series of such motors from the manufacturer. This product has a NEMA 145TC/182 frame and a NEMA C face. The base of the frame is removable. The device has an inductance of 6.8mH and a resistance of 0.77 Ohms. It is equipped with a large sealed box and a large wiring compartment. The wash-down duty motor is an environmentally protected model. This device supports dynamic braking without demagnetization and high overcurrent capacity. The cost-effective motor does not need external excitation to generate magnetic fields. We can ship the device to any address in the world through our delivery agents.
This permanent magnet motor operates without making any noise. The unit has high efficiency because there are no field losses. It is extensively used in the automobile and manufacturing industries. The stator in the device is a steel cylinder that houses the permanent magnets inside it. The permanent magnets are usually composed of rare-earth materials and have a high coercivity and high residual flux density. The motor has a power rating of 2HP, a peak current rating of 93A and a voltage rating of 180V. The device has a protection category of IP 65 and Class H insulation.
The motor complies with NEMA MG1-1.26.5 waterproof designation. The product is fitted with a fused and rugged commutator and a polyester impregnated armature that acts as the rotor. The impregnation offers electrical and mechanical integrity. The north and south poles of the permanent magnets face the armature. The return path for the magnetic flux is provided by the stator. Apart from windings, the armature also includes a commutator and a core. The commutator features field-replaceable brushes with spring pressure. The STF5372-3750-61-82BC-CU unit comes with a one-year warranty period.
