SRF3632-5227-84-5-56BC-CU

Product Description

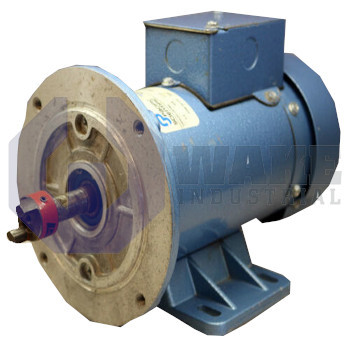

SRF3632-5227-84-5-56BC-CU is a 1/2 HP, 90 V DC motor from KOLLMORGEN. This SCR rated motor is designed to be operated at variable speeds. For speed control, you can use an appropriately rated SCR controller. The frame, foundation, and the faceplate of this motor are designed in accordance with the parameter defined by NEMA 56C. The SRF3632-5227-84-5-56BC-CU consumes around 5.1 of amperes in steady-state operation mode while delivering a maximum continuous torque of 18.0 lb.-inch through its shaft. The resistance and inductance ratings of this motor are 1.3 ohms and 5.8 mH respectively.

This motor comes featured with 2 x ball type, maintenance-free bearings. The SRF3632-5227-84-5-56BC-CU comes with a keyed shaft. Shaft keys offer mechanical protection against the relative movement of the shaft and the pulley. A shaft-mount fan is also incorporated in this motor for cooling purposes. a perforated fan guard covers the fan and allows optimum suction of air. This motor features a larger, termination box that comes with a gasket for proper sealing. The spring-loaded brushes utilized in the construction of this motor are field-replaceable. Technicians can easily replace the factory-installed brushes with YP00565 replacement brushes.

 The H class type of insulation is used for the winding of this motor. H class winding is considered as an ideal winding solution for low voltage motors. The SRF3632-5227-84-5-56BC-CU capitalizes on the benefits of the permanent magnet. The permanent magnet is a much better solution as it is lighter in weight and offers better speed controlling. This PMDC motor weighs around 22 lbs. and its length is 10.10 inches. This fan-cooled motor is designed for continuous duty industrial applications and can also be considered for cyclic applications.
