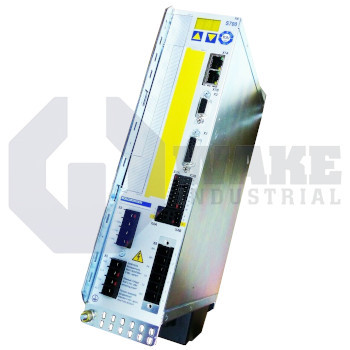

Home Kollmorgen S700 Servo Drive Series S71202-NANANA-NA

S71202-NANANA-NA

Name: S71202-NANANA-NA
Brand: Kollmorgen
Price: 345 USD
Availability: InStock
Rating: 4.5 (17 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Fast

Current response time:

3 Minutes 56 Seconds

The S71202-NANANA-NA is manufactured by Kollmorgen as part of their S700 Servo Drive Series. These drives feature a Rated line power for S1 operation of 9 kVA and a Peak output current of 24 A RMS. Alongside of a Voltage rating of 208-480 V and a Maximum DC bus link voltage of 900 V.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Kollmorgen is a leading company in producing advanced control technology for industrial automation. Kollmorgen delivers a vast range of devices like linear actuators, servo motors, motion controllers and AGV technology. The S71202-NANANA-NA from Kollmorgen is part of the S700 series of digital servo-amplifiers for industry. This servoamplifier can be commanded by an additonal controller via the integrated EtherCAT or CANopen communication port.

This servo drive needs a 3-phase 208 / 480 volts AC voltage supply (at a frequency of 50 hz).

The device is able to generate a stable current of 12000 mA and is able to deliver to the motor a limit current of 24 ampere (for no longer than 5 seconds). The configuration of the S71202-NANANA-NA must be done via the setup DRIVEGUI program connecting a common computer to the system using its integrated RS-232 port. The drive is provided with a basic mono channel verified safety STO feature that will allow the servoamplifier to gain the following certifications: Performance Level D CAT 3 and SIL 2, according to EN 62061.

This servoamplifier has a collection of built-in Input/Outputs such as 2 programmable 24 V DC digital input/outputs (they work both as inputs or outputs), 4 programmable 24 V DC digital inputs, and 2 analog 10 V inputs. They can be configured in a way to accomodate all the customer's requirements. The limit altitude for the system to be installed to permit the module to function correctly should be 3280 feet over the sea level, permitting up to 8200 feet above the sea level adopting power derating (2.5 % / 328 m). This model should be installed in a spot complying to IEC 60664-1 pollution grade 2 meaning that only non-conductive contamination will arise.

S71202-NANANA-NA Technical Specifications

Maximum DC bus link voltage:	900 V
Bandwidth of current controller :	>1.2kHz
Weight:	4.4
Rated input power for continuous operation:	9kVA
Permitted switch on/off frequency:	3 1/h
Maximum DC Bus link Voltage :	900V
Peak Output current:	24Arms
Switching Frequency:	8kHz
Residual Voltage drop at rated current:	4V
Maximum noise emission:	65dB

Frequently Asked Questions about S71202-NANANA-NA

Q: What are the types of industrial motors that can be used with the S71202-NANANA-NA servo amplifier?

A: The S71202-NANANA-NA servo amplifier is compatible with synchronous servo motors, linear motors, asynchronous motors and DC motors. However before the amplifier is connected to any of these motors, operators must ensure that the technical data of the amplifier can support the specific motor series.

Q: Can the S71202-NANANA-NA servo amplifier be configurated with additional safety functions?

A: Although this servo amplifier already features numerous safety functions, it is possible for operators to configure the S71202-NANANA-NA servo amplifier with an additional safety function. The amplifier features a slot where a safty card with more safety functions can be inserted.

Q: Is the setup software delivered with the S71202-NANANA-NA servo amplifier?

A: The setup software is included in the delivery package of the S71202-NANANA-NA servo amplifier. The satup software is loaded on a CD-ROM, it is intended to be used for altering and saving the operating parameters for the servo amplifier.

Q: What is the minimum requirements for the PC used for the configuration of the S71202-NANANA-NA servo amplifier?

A: The PC to be used for the configuration of the servo amplifier is expected to have a pentium II processor or comparable, a windows compatible color graphics adapter, and one free serial interface. The PC is also expected to have a hard disk with at leas 10MB in free space.

Q: Does the S71202-NANANA-NA require any maintenance operation?

A: The S71202-NANANA-NA servo amplifier feature the latest technology and does not require maintenance operation. However operators should ensure the housing of the controller is regularly cleaned to prevent the buildup of dust that can affect airflow.
