Home Kollmorgen S600 Servo Drive Series S60300-PB

S60300-PB

Name: S60300-PB
Brand: Kollmorgen
Price: 205 USD
Availability: InStock
Rating: 4.7 (18 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 3-5 Days

Call for Expedited Shipping and Product Condition Options

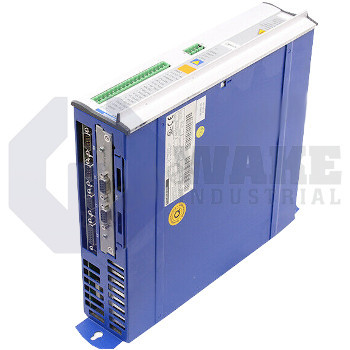

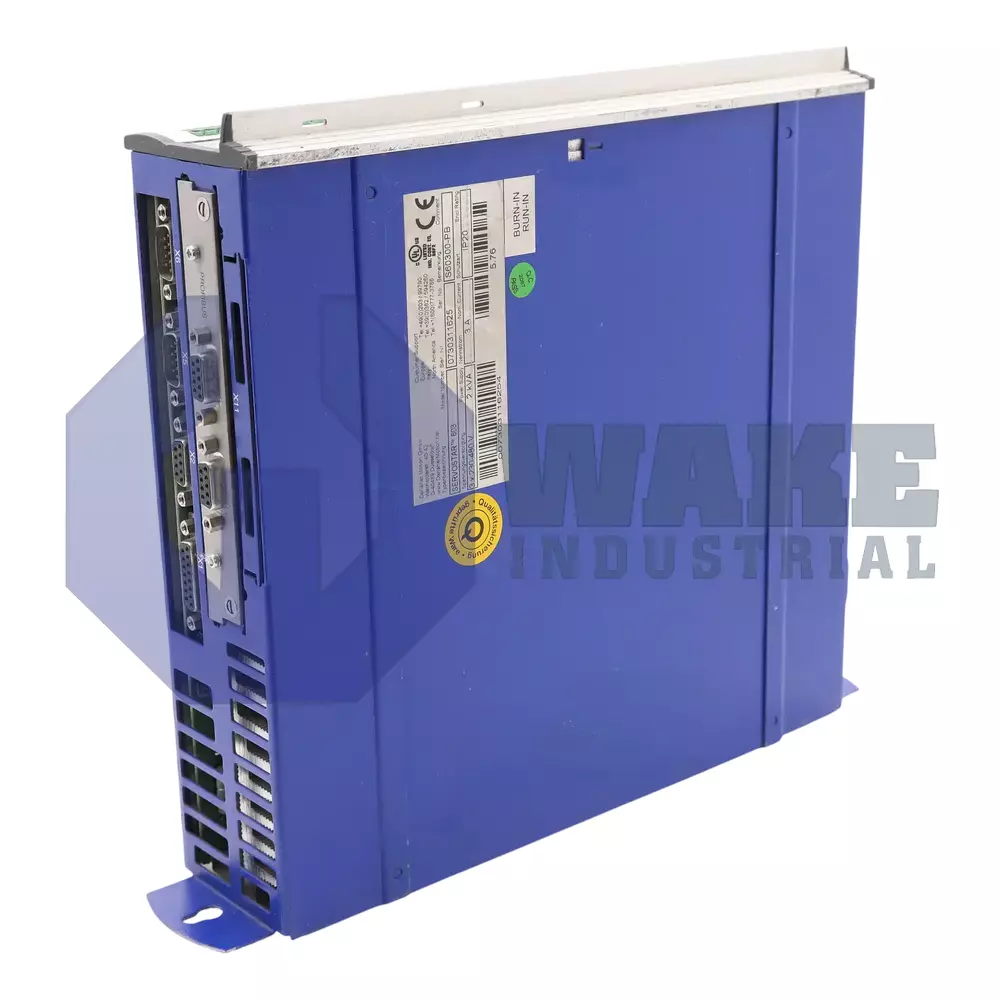

The S60300-PB was manufactured by Kollmorgen as part of their S600 Servo Drive Series. This drive features a rated output current of 3 arms and a peak output current 6 arms. It also withholds a voltage rating of 230-480 V and a Max. continuous performance of 0.5 kW.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Motion control systems allow industries to enhance their net output and reduce waste processes. Kollmorgen is an experienced manufacturer in this area and the company has a great reputation among industries across the world.

The S60300-PB digital drive is used for servo control in highly dynamic environments. The system is frequently employed with synchronous and asynchronous motors. The system’s overvoltage protection threshold is between 450 V to 900 V and its installed load for S1 operation is 2 kV. The S60300-PB comes with an interference suppression filter for the power supply and it can operate in a 0 ᵒC to 45 ᵒC temperature range. In a 45 ᵒC to 55 ᵒC temperature range, the system’s performance parameters show 2.5 % derating per Kelvin rise in temperature. The digital amplifier comes with integrated safety features like soft start, overvoltage recognition, and phase-failure monitoring. Appropriate separation and electrical insulation has been provided between sensitive electrical components. The amplifier comes under the pollution level two in accordance with EN standards and has a 40 W power dissipation when it is operated at rated current.

The S60300-PB has been provided with an integrated pulse-direction interface. This model comes with an RS232 interface and comes with CANopen for integrated with bus systems. The S60300-PB can operate a range of different input voltages between 240 V to 480 V. With an IP 20 standard protection, the system can operate in adverse ambient conditions. The digital amplifier can be mounted in a vertical position. For effective ventilation and removal of heat from the control cabinet, the system comes with an inbuilt fan that uses forced convection for the purpose.

S60300-PB Technical Specifications

External Brake Resistance:	33 Ohm
Permissible pollution level for operation:	Pollution level 2 according to EN 60664-1
Weight :	4kg
Rated installed load for S1 operation:	2kVA
DC Bus Link Voltage:	290 to 675V
Residual Voltage drop at rated voltage :	5V
Overvoltage protection treshold. :	450 to 900 V
Protection class :	IP20
Maximum noise emission:	45dB
Ventilation :	Forced convection by built-in fan.

Frequently Asked Questions about S60300-PB

Q: What additional accessories are included in the S60300-PB servo amplifier package?

A: When you order the S60300-PB amplifier, you will also receive mating connectors X3, X4, X0A, X0B, X7 and X8. Apart from this, the amplifier is also supplied with an instructions manual, a setup software on CD-ROM and an online documentation on another CD-ROM.

Q: Can the S60300-PB servo amplifier control motor holding brakes?

A: The holding brake in the industrial synchornous motor can be accuratly controlled by the servo amplifier. The brake control function must be enabled on the controller through the BRAKE parameter.

Q: How does the S60300-PB servo amplifier respond to power faliure?

A: The S60300-PB servo amplifier use a sophisticated integrated circuit to detect if one or more power supply field fails. The response of the amplifier to power faliure has to be determined by the operator through the setup software.

Q: What types of electric cables should be used with the S60300-PB servo amplifier?

A: Kollmorgen already provides standardized electrical cables that are compatible with the S60300-PB servo amplifier. These cables can be ordered by customers as a separate unit. It is important to use the correct cable with the amplifier to prevent industrial accidents.

Q: is the S60300-PB servo amplifier compatible with multiple feedback system?

A: Yes.The unique design of the S60300-PB servo amplifier makes it able to support the most common types of feedback. Example of feedback types supported by this amplifier include the Resolver feedback, sensorless feedback, the RS422 5V feedback, the SinCos Encoder HIPERFACE feedback and the SinCos ENDAT feedback type.
