MSM115-89-404-E2-0KA

Product Description

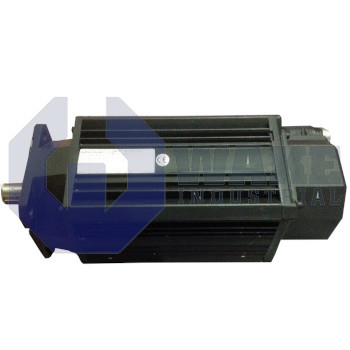

The MSM115-89-404-E2-0KA is a highly efficient 460 Volt brushless servo motor in the MSM product series from Kollmorgen. This 11.0 kg servo motor comes designed with rotor inertia of 0.0016 kgm², torque constant of 1.03Nm/Amp and voltage constant of 123 Volts/Krpm. It features a frame size of 115, 6 poles, and has a speed of 4000 RPM. Its design also includes an incremental encoder and shaft with a keyway. The stall current for this model of MSM brushless servo motor is 10.9 Amps, and its maximum current is 38.2 Amps. Its shaft material is ST-60.

The phase-to-phase winding resistance of the MSM115-89-404-E2-0KA at 25^O C is 2.0, and its winding inductance is 12.0 mH. The continuous torque for this product is 10.1 Nm, but it can reach a peak torque of 32.0 Nm. Also, the ambient temperature for optimal operation of this servo motor is 0^O C to 40^O C. During storage, it should be kept in a range between -30^O C and 70^O C and the non-condensing relative humidity should be left between 5 % and 95 %.

Kollmorgen has created the Motors Motion Solutions series of brushless motors like the MSM115-89-404-E2-0KA for a wide variety of applications which include web and film processing, metal cutting, and CAM replacements. To facilitate its functions in these areas, some of its standard features include temperature sensors in its windings which detect abnormal operation and induce intelligent shutdown of the system, effective heat transfer with an innovative stator design, and industrial packaging for continuous operation in harsh environments. CAD drawings and designs can also be used to ensure a flawless design into the system in which it will be used.
