LSM100-46-454-E2-OKA

  • Rated 4.4 (8 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 3-5 Days

Current response time:

5 Minutes 35 Seconds

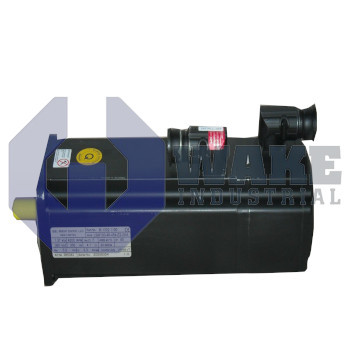

The LSM100-46-454-E2-OKA was manufactured by Kollmorgen as part of their LSM Brushless Servo Motor Series. It features a Continuous Torque of 5.2 Nm and a Peak Torque of 16 Nm. It also provides a Stall Current of 6.4 amps and a Maximum Current of 21.2 amps.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The LSM100-46-454-E2-OKA Kollmorgen brushless servomotor is connected to the belt in which it is mounted using a torsionally rigid coupler. This coupler must be tight to ensure that it does not slip and cause instability or any damage to the shaft. The tightening belt and coupling of this product have to be checked for proper alignment so that it does not have any significant bearing load. The device is used for high-duty cycle applications. The rotor magnets of the unit render high acceleration and deceleration as required. The product features peak torque and high acceleration. The device has an overall length of 295mm.

The maximum radial load pertaining to the brushless motor should at no point in time be exceeded. The lifespan of its bearing tends to get reduced due to contamination of the bearing grease from external sources. The torque constant of the device is used to control its speed. The unit can be used worldwide because of its CE certification. The product portrays a voltage constant of 103V/kRPM. The motor weighs 13.9lbs. The device incorporates a unique stator design that offers optimal thermal transfer. The built-in temperature sensors in the windings assist in intelligent shut down on the unit in case of an overload.

The motor shaft is designed using ST-60 material. The product can endure up to 36kg radial load at 4,000RPM on its bearing. It must be ensured that there is never any axial load force on the brushless design. The Pins 15, 16 and 17 of the device have no connection if an absolute encoder or a high-resolution encoder is used. The motor is supposed to be mounted on a 0.5 x 10 x 10 inches aluminum heatsink. It must be stored at a temperature between -30°C and 70°C. The servomotor is shipped in custom military-grade packaging with a year’s warranty from Wake Industrial.

  • LSM10046454E2OKA
  • LSM-100-46-454-E2-OKA
  • LSM10046-454-E2-OKA

LSM100-46-454-E2-OKA Technical Specifications

Continuous Torque : 5.2 Nm
Maximum Current: 21.2 amps
Peak Torque : 16 Nm
Speed: 4500 rpm
Stall Current: 6.4 amps
Winding Inductance: 12.44 mH
Winding Resistance: 3.9 mH
