IC11050A1P1106

Product Description

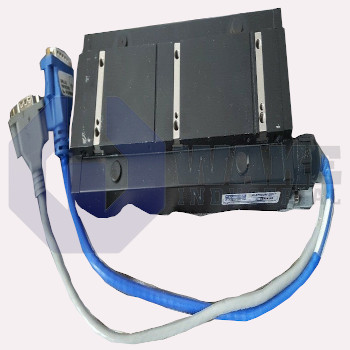

IC11050A1P1106 is a DDL linear motor produced by Kollmorgen Company. It is ideal for applications that require high acceleration of large masses during machining or force processing. The motor comes with high magnetic attractive forces which range from a few pounds to many tons. It is advisable to exercise caution when handling them. This type can only be inverted through wiring sine encoder with or without halls as well as an incremental encoder with or without hall.

The IC11050A1P1106 can only be used with SERVOSTAR software, and only qualified persons should install and maintain it. Ensure that all components of this linear motor are connected to ground earth to avoid bodily injury. You must discharge yourself before handling the motor to mitigate the chances of fatal injuries. As an added safety feature, you should keep covers and cabinet doors shut to avoid deadly hazards during operation. The IC11050A1P1106 Kollmorgen linear motor meets the UL and cUL USA and Canada standards. It is free from electric shock, injuries, or fire caused by the machine. When mounting the magnet way and coil assembly, ensure that the magnet way is firmly bolted to the base plate of the stage.

The encoder and assembly should are to be mounted to the side component of the stage. For optimal magnet way mounting, ensure the stage base has precision 5mm dowel pins. The IC11050A1P1106 magnet way has high magnetic attractive forces which can damage the machine or cause injuries. It is recommended that you exercise extreme caution. When choosing the bearings and linear rails for the stage, consider this magnetic force. The bearings should be able to handle the preload supplied by the linear motor.
