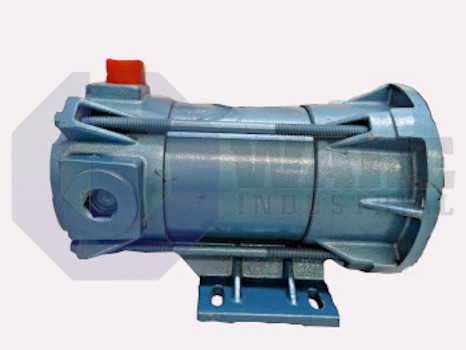

EP3648-4952-7-56BC-CU

Name: EP3648-4952-7-56BC-CU
Brand: Kollmorgen
Price: 285 USD
Availability: InStock
Rating: 4.6 (29 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships Today

Current response time:

6 Minutes 9 Seconds

The EP3648-4952-7-56BC-CU DC motor by Kollmorgen delivers 27 Nm continuous torque with a low resistance of 0.06 Ohms, ensuring efficient power transmission and smooth, precise performance in automation systems.

Email

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Product Description

The EP3648-4952-7-56BC-CU is a high-performance DC motor built for industrial automation. It is manufactured by Kollmorgen which specializes in electrical components. This motor is recognized for its reliability and efficiency. With a 24 VDC operating voltage, a power output of 3/4 horsepower, and a rotational speed of 1750 RPM, it offers excellent performance suited for precise automation tasks. Its NEMA 56C frame and TENV (Totally Enclosed Non-Ventilated) enclosure ensure optimal protection and compatibility with standard industrial systems.

The EP3648-4952-7-56BC-CU DC motor draws 28.2 amps of current and provides a continuous torque of 27 Nm. It delivers consistent and powerful output during extended use. The motor's constant torque rating is 1.02 Nm which highlights its capability for continuous operation under varying loads. It has a low resistance of 0.06 Ohms which allows for efficient power transmission. It has an inductance of 0.22 mH that ensures smooth and responsive motor control. With an inertia rating of 7.1 lb-in, the motor is designed for applications requiring smooth acceleration and controlled motion. Its 1750 RPM speed combined with its torque characteristics makes it suitable for precision-driven tasks in automation setups. This ensures stability and reliability over long periods of operation.

Weighing 34 lbs., the EP3648-4952-7-56BC-CU DC motor is compact yet durable. It has a length of 13.38 inches which allows for straightforward installation in a variety of systems. The TENV enclosure ensures that the motor is fully protected from external elements and ensures a longer operational life without requiring ventilation. This motor requires YP00583 brush replacements which ensures continued functionality and ease of maintenance. The motor's advanced technical specifications combined with its protective enclosure and robust construction. This makes it a dependable choice for complex automation tasks that require consistent performance and long-term reliability.

EP3648-4952-7-56BC-CU Technical Specifications

Operating Voltage:	24 VDC
Weight:	34 lbs
Enclosure Type:	TENV (Totally Enclosed Non-Ventilated)
Power Output:	3/4 horsepower
Rotational Speed:	1750 RPM
Current Draw:	28.2 amps
Continuous Torque:	27 Nm
Constant Torque Rating:	1.02 Nm
Resistance:	0.06 Ohms
Inductance:	0.22 mH
Inertia Rating:	7.1 lb-in

Frequently Asked Questions about EP3648-4952-7-56BC-CU

Q: How does the low resistance benefit EP3648-4952-7-56BC-CU DC motor?

A: The low resistance of 0.06 Ohms in the EP3648-4952-7-56BC-CU DC motor minimizes power loss, ensuring higher efficiency during operation.

Q: Why does EP3648-4952-7-56BC-CU motor use TENV enclosure?

A: The TENV enclosure in the EP3648-4952-7-56BC-CU DC motor protects it from dust and moisture, prolonging its lifespan.

Q: How does inductance affect the EP3648-4952-7-56BC-CU motor's performance?

A: The 0.22 mH inductance of the EP3648-4952-7-56BC-CU motor ensures smooth and responsive control, especially in automation tasks.

Q: What is the purpose of YP00583 brush in EP3648-4952-7-56BC-CU?

A: The YP00583 brush replacement ensures continuous functionality in the EP3648-4952-7-56BC-CU DC motor, simplifying its maintenance routine.

Q: How does inertia rating impact EP3648-4952-7-56BC-CU DC motor?

A: The 7.1 lb-in inertia of the EP3648-4952-7-56BC-CU motor enables smooth acceleration and controlled motion for precision tasks.

Internal Product Review

‘‘The EP3648-4952-7-56BC-CU DC motor by Kollmorgen excels with its 3/4 horsepower output, 24 VDC voltage, and 1.02 Nm constant torque rating. Its TENV enclosure ensures durability, while 28.2 amps of current and smooth acceleration make it ideal for high-precision automation tasks.’’
