CTM22NLF19NAA00

  • Rated 4.6 (33 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees

Current response time:

5 Minutes 46 Seconds

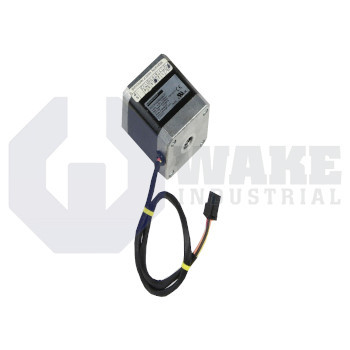

The CTM22NLF19NAA00 is manufactured by Kollmorgen as part of the CT stepper motor series. It features an inductance of 11 mH and a current of 1.9 amps. It also includes a thermal resistance of (Mounted °C/Watt) 2.62 and a resistance of 3.25.
