AKM54K-ACCNR-00

Name: AKM54K-ACCNR-00
Brand: Kollmorgen
Price: 494 USD
Rating: 4.4 (37 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

Call for Expedited Shipping and Product Condition Options

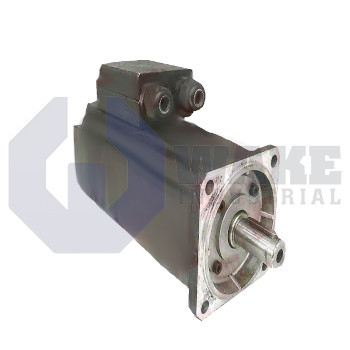

The akm54k-accnr-00 servo motor features high precision motor feedback and optimal control. The motor suits high radial force applications perfect for toothed belts or pinions.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Kollmorgen is a leading provider of motion systems and components. Their products include servo motors, drives, and automation platforms. They serve diverse automation industries globally.

The akm54k-accnr-00 is one of the various servomotors manufactured by Kollmorgen that operates with a SERVOSTAR digital servo amplifier. The motor features Class F insulation according to DIN EN 60034-14 specifications. The akm54k servo motor features a protective category of IP 65 and encompasses an electrically isolated PTC that is fitted into the monitoring system present in the servo amplifier. The motor is intended to operate between an ambient temperature range of +5?C to +40?C. The motor offers a standstill torque of 14.4 Nm while consuming a standstill current of 9.7 A. The motor supports an IM B5 basic mounting style. The cylindrical shaft end at the A-side is used for power transmission. The thermal time constant for the motor is 31 minutes and the torque constant value is 1.50 Nm/A. The model incorporates a three-phase winding. The akm54k servo motor must be protected from unacceptable stress and care should be taken to ensure that the insulation clearances do not get changed during transport.

The motor akm54k-accnr-00 generates a peak torque of 38.4 Nm while consuming a peak current of 29.2 A. The device tends to experience a high radial force when it is driven by toothed belts or pinions. The motor makes use of a standard resolver for feedback. The position of the resolver is evaluated by the servo amplifier. The PTC of the motor has a temperature rating of 155?C+/-5%. The shaft and flange of the device are vulnerable during assembly as well as storage. This product (akm54k-accnr-00) is available on the Wake Industrial website.

AKM54K-ACCNR-00 Technical Specifications

Series:	AKM
Static Friction Torque:	0.077 Nm
Product Type:	Servo Motor
Standstill Torque:	14.4 Nm
Standstill Current:	9.7 A
Thermal Time Constant:	31 minutes
Torque Constant:	1.50 Nm/A
Voltage Constant:	96.6 mVmin
Peak Torque:	38.4 Nm
Peak Current:	29.2 A

Frequently Asked Questions about AKM54K-ACCNR-00

Q: What type of insulation is used in the akm54k-accnr-00 model?

A: The motor is equipped with Class F insulation as per DIN EN 60034-14 standards. This ensures high thermal resistance and durability under varied operational conditions.

Q: What are the environmental specifications for the akm54k-accnr-00 servo motor?

A: This servo motor is designed to operate effectively in ambient temperatures ranging from +5?C to +40?C. It features IP 65 protection, safeguarding against dust and water ingress during operation.

Q: How does the akm54k-accnr-00 handle power transmission?

A: The akm54k-accnr-00 uses a cylindrical shaft end on the A-side for efficient power transmission. This feature is crucial for maintaining performance stability and operational reliability.

Q: What is the role of the PTC in the akm54k-accnr-00 motor?

A: The motor includes an electrically isolated PTC integrated into its monitoring system. This component helps in protecting the motor by monitoring temperature variations.

Q: What feedback mechanism is employed in the akm54k-accnr-00 servo motor?

A: The servo motor utilizes a standard resolver for feedback. This setup allows the SERVOSTAR digital servo amplifier to accurately assess and adjust the motor's position.

Internal Product Review

‘‘The model by Kollmorgen is a high-performance servomotor optimized for precision applications. The servo motor akm54k-accnr-00 integrates a standard resolver for precise feedback and operates with a SERVOSTAR digital servo amplifier for enhanced control. The servo motor is ideal for scenarios requiring high radial force.’’
