AKM23D-ANCN2-00

Product Description

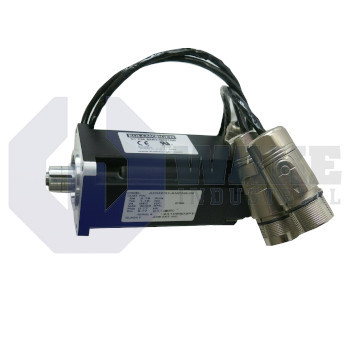

The AKM23D-ANCN2-00 is a synchronous servo motor from Kollmorgen in its AKM series of motors. The motor must be operated along with a SERVOSTAR digital amplifier from the manufacturer under torque or speed control. The device is fitted with neodymium-iron-boron permanent rare earth magnets in the rotor. It comes with a matte black enameled finish that is not resistant to solvents. The unit operates at a temperature of 5°C to 40°C. The motor has a flange size of 3, corresponding to 58mm. The brushless servo motor has a maximum mains voltage rating of 480VAC. The device is available with a one-year warranty period.

The servomotor features an inbuilt resolver as the standard feedback element. The motor is used in applications that require a high degree of stability and dynamics. The device features an IM B5 horizontal mounting style in accordance with DIN 42950 specifications. It experiences a high radial force when driven through toothed belts or pinions. The unit has a rotor length of 3 and a winding type of D. The motor also features a standstill torque of 1.16Nm and a standstill current rating of 2.19A. The built-in thermostat does not protect the motor against heavy overloads or shorts. The device makes use of straight connectors at the cable ends for feedback and power supply signals.

The flange of the motor is designed according to IEC specifications. The motor comes with a smooth shaft. The device is fitted with a nameplate that shows details such as serial number, standstill current, protection class, rated power, mains voltage and more. The unit and the associated servo amplifier must be earthed properly during connection. The power and control cables must be kept away from each other at a minimum distance of 20cm. The motor has a rated speed of 1,500min^-1 at 115V. The AKM23D-ANCN2-00 can be safely dispatched to your address through our delivery partners.
