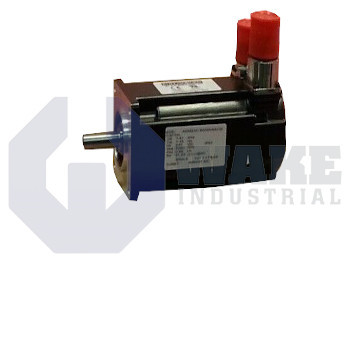

AKM23C-BNGNAA-HG

  • Rated 4.5 (30 total ratings)
  • Straightforward Pricing: No Rush Fees, No Credit Card Fees
    In-Stock, Ships 1-2 Days

Current response time:

5 Minutes 13 Seconds

The AKM23C-BNGNAA-HG Is manufactured by Kollmorgen and features a max BUS of 640 and max Tp of 4.82 Nm. The AKM series also featured a max rated force of 8000 and max rated power of .54 kW.

Preparing your secure checkout page...

Warranty
1-year-warranty Wake Industrial Warranty
Shipping
DHL Logo FedEx Logo
UPS Logo Freight Logo
DHL Logo FedEx Logo UPS Logo Freight Logo
Payment
Visa Logo AmEx Logo
Mastercard Logo Wire transfer Logo
Visa Logo AmEx Logo Mastercard Logo Wire transfer Logo
To Speak to a sales representative for pricing and lead time:

Product Description

The AKM23C-BNGNAA-HG falls under the AKM series of synchronous motors produced by Kollmorgen. This type has a 58mm flange size, 3 rotor length, and a C winding type. It comes with a NEMA flange and a smooth shaft. It is designed for industrial applications such as robots, packaging machines, machine tools and many more. It is operated together with servo amplifiers from the SERVOSTAR series for torque and speed control. The AKM23C-BNGNAA-HG is installed as a component in an electrical machine and can only be operated as a part of the machine.

Ensure that the motor is directly connected to the mains supply. When combined with a servo amplifier, it becomes ideal for positioning tasks in industrial robots, machine tools, and transfer lines among others. The tool provides high stability and dynamics needed for such applications. Some of its general technical data include an ambient temperature range of 5 to 40 degrees, an installation elevation of 1000 meters above sea level, and relative humidity of 95% without condensation. The AKM23C-BNGNAA-HG lacks a brush since its commutation is performed electronically through the servo amplifier. The permanent magnets are made of rare earth neodymium-iron-boron material that makes the driving of the motor more dynamically.

Mounting the AKM23C-BNGNAA-HG is achievable through three distinctive orientations. The IM B5, IM V1, and IM V3 orientations. Precaution should be observed when using the IM V3 orientation since fluid penetration is possible. Use a shaft sealing in this orientation. When the shaft bushing has the shaft sealing, the protection class changes to IP 65. Ensure that the motor and the servo amplifier match each other to avoid system shadow or machine damage. Get this Kollmorgen motor from Wake Industrial.

  • AKM-23C-BNGNAAHG
  • AKM23C-BNGNAAHG

AKM23C-BNGNAA-HG Technical Specifications

Frame Size: AKM2
Max BUS (VDC): 640
Max Rated N: 8000
Max Rated Power at Max BUS: .54 kW
Max Stall Tc: 1.4 Nm
Max Tp: 4.82 Nm
Stack Length: 3
