AKM11B-ANMN2-00

Product Description

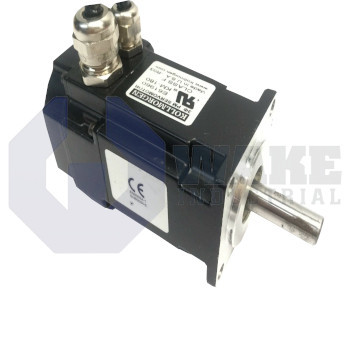

The AKM11B-ANMN2-00 synchronous servomotor from Kollmorgen is one of the several high-performing motors from the manufacturer. The motor must be used ideally with the SERVOSTAR digital servo amplifier. The standard device has 1 flange size corresponding to 40mm. It has a standstill torque of 0.18Nm and a standstill current of 1.16A. The unit housing should be earthed safely to the protective earth busbar in the switch cabinet. The connectors must not be unplugged during operation. For best performance, the motor must be used with friction-locking or backlash-free couplings or collets. The couplings must be aligned properly to avoid the destruction of bearings and couplings, as well as to prevent vibrations.

The servomotor features Class F insulation in adherence to DIN 57530 specifications. The motor is designed to vibration Class N in accordance with DIN ISO 2373. It is fitted with two-pole hollow shaft resolvers. Liquids must not enter the upper bearing when the motor is mounted with the shaft end upwards. The device is intended for installation in electrical machines or apparatuses. The unit must not be connected to the mains supply directly. The motor operates at a temperature range of 5°C to 40°C at an altitude of 1,000m above sea level. It is available with a warranty period of one year.

The AKM series motor has a rated speed of 4,000min^-1 at 115V. The device is fitted with a 0.5m shielded cable that is equipped with IP 20 connectors and does not incorporate any brake. The ball bearings have a life of more than 20,000 operating hours. The flange dimensions are according to IEC standards and its accuracy is as per DIN 42955 specifications. The motor comes fitted with an electrically isolated PTC. The thermostat of the motor does not offer protection against heavy overloading and shorts. The device can be delivered to any address worldwide through our global network.
