Home Kollmorgen AKD Servo Drive Series AKD-P01207-NBCC-E000

AKD-P01207-NBCC-E000

Name: AKD-P01207-NBCC-E000
Brand: Kollmorgen
Price: 437 USD
Availability: InStock
Rating: 4.5 (6 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 1-2 Days

Current response time:

3 Minutes 52 Seconds

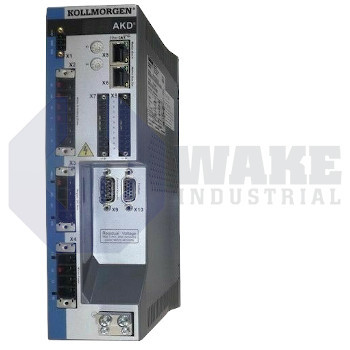

The AKD-P01207-NBCC-E000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 8000 Watts and a rated supply voltage of 240/480 V. As well as, Rated output current of 12 A and a peak output current of 30 A. AKD drives offer the greatest output in a compact body.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

Industrial motion control is a very important part in bringing efficiency to the industrial floor. Kollmorgen servo drives in the AKD series are fast, efficient, and flexible allowing them to be interfaced with almost any application on the factory floor. To provide seamless and easy access to everything in the machine, these servo drives have plug-and-play features. Kollmorgen AKD drives have top of the range communication options and industry-leading performance despite their small frame size. Each drive has a unique MAC address which enables easy identification of the drive on the industrial Ethernet network.

The AKD-P01207-NBCC-E000 is a servo drive manufactured by Kollmorgen. The AKD-P01207-NBCC-E000 features rotary switches enabling it to be configured without the need of a graphical user interface. These switches can be used to configure crucial functions such as IP-network addressing, changing CAN-Bus baud rate, changing between NACC and NBCC drive modes, and loading data to the attached SD card. Note that the SD card slot is used to transfer and back up the parameter file. To allow for easier management and interaction, the Kollmorgen AKD drive supports the WorkBench interface software.

The Kollmorgen AKD-P01207-NBCC-E000 has an industry-leading power density and has a compact design enabling it to occupy a small space on the industrial floor. To enable the AKD-P01207-NBCC-E000 to handle a wide range of industrial applications and to interface with external devices on the industrial network, the drive supports multiple feedback devices, Ethernet connectivity options, and bus choices. Note that multiple bus options are crucial to system optimization. The drive can be used with the Kollmorgen Automation Suite allowing it to be used with high-performance multi-axis and single-axis systems.

AKD-P01207-NBCC-E000 Technical Specifications

Control Logic, Supply Voltage:	24 V
Weight:	4.3kg
Maximum Inrush Current:	9A
Rated Input Power for S1 operation :	7.65KVA
Extension Options:	None
Connectivity Options:	EtherCat & CANopen
Volatge Rating:	240/480Vac
Current rating :	12Arms
Integrated EMC Filters:	Present
Maximum Recommended fuse rating:	15A

Frequently Asked Questions about AKD-P01207-NBCC-E000

Q: How is the AKD-P01207-NBCC-E000 packaged for delivery?

A: The packaging of the AKD-P01207-NBCC-E000 consist of recyclable cardboard with inserts and a label on the outside of the box for easy identification.

Q: How often should the AKD-P01207-NBCC-E000 be cleaned and maintained?

A: The AKD-P01207-NBCC-E000 does not require maintanance. Opening the drive voids the warranty on it. Only the manufacturer is allowed to open the drive for maintanance and cleaning. However the exterior of the drive can be cleaned Isopropanol.

Q: Is the AKD-P01207-NBCC-E000 environmentally friendly?

A: Yes. Under ideal operating conditions, the AKD-P01207-NBCC-E000 drive does not release any dangerous chemicals to the environment, the drive can also be integrated with a mains filter that allows it to meet the noise immunity requirement to the 2nd environmental category.

Q: What other items are supplied with the AKD-P01207-NBCC-E000 drive?

A: When the AKD-P01207-NBCC-E000 is ordered, it is supplied with a printed copy of the AKD guide, a DVD containing the ADK installation manual, Mating connectors, and grounding plates.

Q: How does the AKD-P01207-NBCC-E000 communicate errors and faults

A: TheAKD-P01207-NBCC-E000 features a Light Emitting Diode display on its front panel. In the case of operational errors, the drive display appropriate warning code on this display unit.
