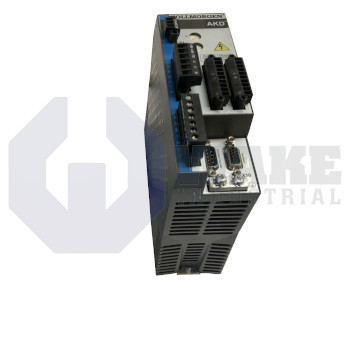

AKD-B00606-NAAN-0000

Name: AKD-B00606-NAAN-0000
Brand: Kollmorgen
Price: 166 USD
Availability: InStock
Rating: 4.5 (11 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 1-2 Days

Current response time:

3 Minutes 14 Seconds

The AKD-B00606-NAAN-0000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 2000 Watts and a rated supply voltage of 120/240 V. As well as, Rated output current of 6 A and a peak output current of 18 A. AKD drives offer the greatest output in a compact body.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The Kollmorgen AKD series drives brought unprecedented improvements on motion systems used on the industrial floor. These drives allowed synchronous servo motors to be controlled more accurately at a constant speed without huge deviations. When used with a single-phase AC motor, a closed-loop control enables the motor to deliver a higher performance and be more efficient. With an international protection rating of IP 20, AKD drives are designed to be operated in an environment with small solid objects the size of a human finger and away from liquids. This protection rating requires the drives to be mounted inside a control cabinet that can withstand dust and water splashes from all directions.

The Kollmorgen AKD-B00606-NAAN-0000 is a servo drive in the AKD series. Drives in this series have electrostatically sensitive components requiring earthing and proper handling to minimize damage to these components. The AKD-B00606-NAAN-0000 supports the use of the Kollmorgen WorkBench setup software which allows drive parameters to be altered and or saved. To save time, the software can be used to set or alter parameters when the drive is still running.

With the use of parameters, the AKD-B00606-NAAN-0000 can be interfaced with a wide range of synchronous motors on the industrial floor. This eliminates the need for a new drive each time a motor is replaced. The AKD-B00606-NAAN-0000 has a built-in fan to provide the much-needed cooling. For optimal operation, the drive should be mounted vertically, in an environment with level 2 pollution, and an altitude not exceeding 1000 meters. Note that operating the drive at an altitude higher than 1000 meters causes power derating at a rate of 1.5 percent per every 100 meters.

AKD-B00606-NAAN-0000 Technical Specifications

Control Logic, Supply Voltage:	24 V
weight:	1.7kg
Drive version :	Base
Current Rating:	6Arms
Voltage rating:	120/240Vac
Connectivity Options:	Analog
Rated supply Input Frequency:	50 to 400Hz
Rated input power for S1 operation:	2.38KVA
Maximum Inrush Current :	10A
Maximum motor inductance :	125mH

Frequently Asked Questions about AKD-B00606-NAAN-0000

Q: In what environment is the use of the AKD-B00606-NAAN-0000 prohibited?

A: The AKD-B00606-NAAN-0000 should not be used in environments with corrosive and/or electrically conductive acids, alkaline solutions, oils, vapour and dust. The use of the drive on shipes and offshore applications is also prohibited.

Q: What is the appropriate way to handle the AKD-B00606-NAAN-0000 before installation?

A: The AKD-B00606-NAAN-0000 contain electristatically sensitive components that can be damaged by incorrect handling. Operators should be properly discharged before touching the drive. Also, contact with highly insulating materials such as plastic films and artificial fabrcis should be avoided.

Q: Is the long term storage of the AKD-B00606-NAAN-0000 after purchase allowed?

A: The storage of the AKD-B00606-NAAN-0000 after purchase is permissible. The drive should be stored at an ambinet temperature bellow 550C and a relative humudity that falls between 5 to 95%.

Q: In what material is the AKD-B00606-NAAN-0000 packaged before delivery?

A: The AKD-B00606-NAAN-0000 Is packaged in a recyclable cardboard with inserts and a label on the outside of the box for easy identification. The dimension of the package is 113×250×222mm.

Q: What is the recommneded cleaning agent for the housing of the AKD-B00606-NAAN-0000?

A: The AKD-B00606-NAAN-0000 should be cleaned with isopropanol or any similar cleaning liquid. Isopropanel is highly flammable, opertors should wait at least 30 minutes after cleaning to before putting the device back into operation.
