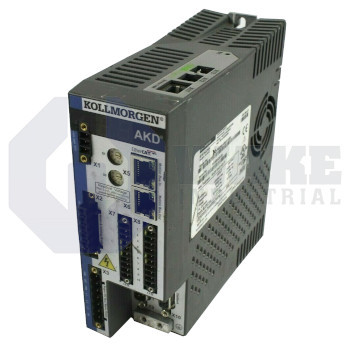

AKD-P00306-NBCC-I000

Name: AKD-P00306-NBCC-I000
Brand: Kollmorgen
Price: 363 USD
Availability: InStock
Rating: 4.4 (31 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships 3-5 Days

Current response time:

5 Minutes 12 Seconds

The AKD-P00306-NBCC-I000 is manufactured by Kollmorgen as part of the AKD Servo Drive Series. These drives are fast, and flexible drives with features such as a drive continous output power of 1100 Watts and a rated supply voltage of 120/240 V. As well as, Rated output current of 3 A and a peak output current of 9 A. AKD drives offer the greatest output in a compact body.

Email

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Product Description

Engineers and innovators frequently rate Kollmorgen as one of the best manufacturers of control equipment. The company has a wide assortment of products and also provides optimized solutions for different industrial challenges.

The AKD series features many top of the line digital drives. The AKD-P00306-NBCC-I000 belongs to this series and is frequently used with induction machines, servo motors, and synchronous motors. The drive comes with enhanced safety features like emergency stop switch and safe torque off (STO). These features are important for ensuring the safety of workers and equipment during operation. This model supports connectivity with a variety of inputs including Analog, CANopen, and EtherCAT. Additional features include an onboard motion bus and TCP service channel. The AKD-P00306-NBCC-I000 can be operated within a supply voltage range of 120 V to 480 V. The digital drive has suitable insulation and creepage distances so that there is a safe electronic separation between motor connections and other electronics.

Another prominent feature of this drive is dynamic braking that is used to stop the motor abruptly by dissipating the motor’s kinetic energy as heat. The AKD-P00306-NBCC-I000 has many integrated safety features that include overvoltage monitoring, short-circuit protection, and phase-failure detection. The drive also comes with complete digital control options for controlling current, velocity, and position. Famous automation protocols like EnDAT, BiSS, and HIPERFACE are supported onboard. The AKD-P00306-NBCC-I000 is very effective in conditions where motion across multiple axes is to be controlled. The drive also provides options for adding time delays in motion and processing I/O. Lastly, this digital drive can be used flexibly with the base drive because all process variables can be modified in accordance with the base-drive.

AKD-P00306-NBCC-I000 Technical Specifications

Control Logic, Supply Voltage:	24 V
Rated DC bus link voltage :	170 to 340 V
Weight :	1.1kg
Rated supply voltage :	3×120 to 240V, 1×120 to 240V
Rtaed supply input frequency :	50 to 400Hz
Rated input power for S1 operation:	1.2KVA
Maximum inrush current:	10A
Maximum motor inductance :	250mH
Thermal dessipation at rated current:	31W
Peak output current:	9Ams

Frequently Asked Questions about AKD-P00306-NBCC-I000

Q: What does the Safety torque function of the AKD-P00306-NBCC-I000 do?

A: The safety torque function is designed to provide operators of the AKD-P00306-NBCC-I000 with an additional layer of safety. This funcion secures the drive on a standstill using its internal electronics, so that even when power is being supplied, the dirve shaft is protected against unintentional restart.

Q: what are the standard accessories required for the proper installation of the AKD-P00306-NBCC-I000?

A: The instalion of the AKD-P00306-NBCC-I000 requires an M4 hexagon socket cap screws, a 3mm T-handle Allen key, a No.2 phillips head screwdriver and a small slotted screwdriver. Additional accssories might be required depending on specific installation requirements.

Q: What are the types of electrical motors that are compatible with the AKD-P00306-NBCC-I000 controller?

A: The AKD-P00306-NBCC-I000 is designed to be used with synchornous servo motors, linear motors, and induction motors. The use of the controller with any of these industrial motor guarantees accuracy and efficiency.

Q: Can operators used third party cables with the AKD-P00306-NBCC-I000 controller?

A: The use of third party cables with the AKD-P00306-NBCC-I000 is permissible. However the electrical cable used must be standardized and meet the specifications stated in the documentation supplied with the controlelr. Wires with colore green or one or more yellow stripes must only be used for protective earth wiring.

Q: What are the materials included in the supply package of the AKD-P00306-NBCC-I000?

A: Part from the AKD-P00306-NBCC-I000 itself, other materials included in the supply package include a pronted copy of the AKD supply guide, mating connectors, grounding plates and a DVD containing the AKD installation manual.
