SS150-P1

Name: SS150-P1
Brand: Danaher
Price: 496 USD
Availability: InStock
Rating: 4.5 (19 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

In-Stock, Ships in 3 Days

The SS150-P1 is part of Danaher's Slo-Syn Synchronous Motors series and features a nominal torque ranging from 99 Ncm to 700 oz-in. It offers a 6-lead unipolar drive configuration, nominal phase inductance from 0.85 mH to 61 mH, and mechanical shaft diameter of approximately 0.750 inches.

Email

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Product Description

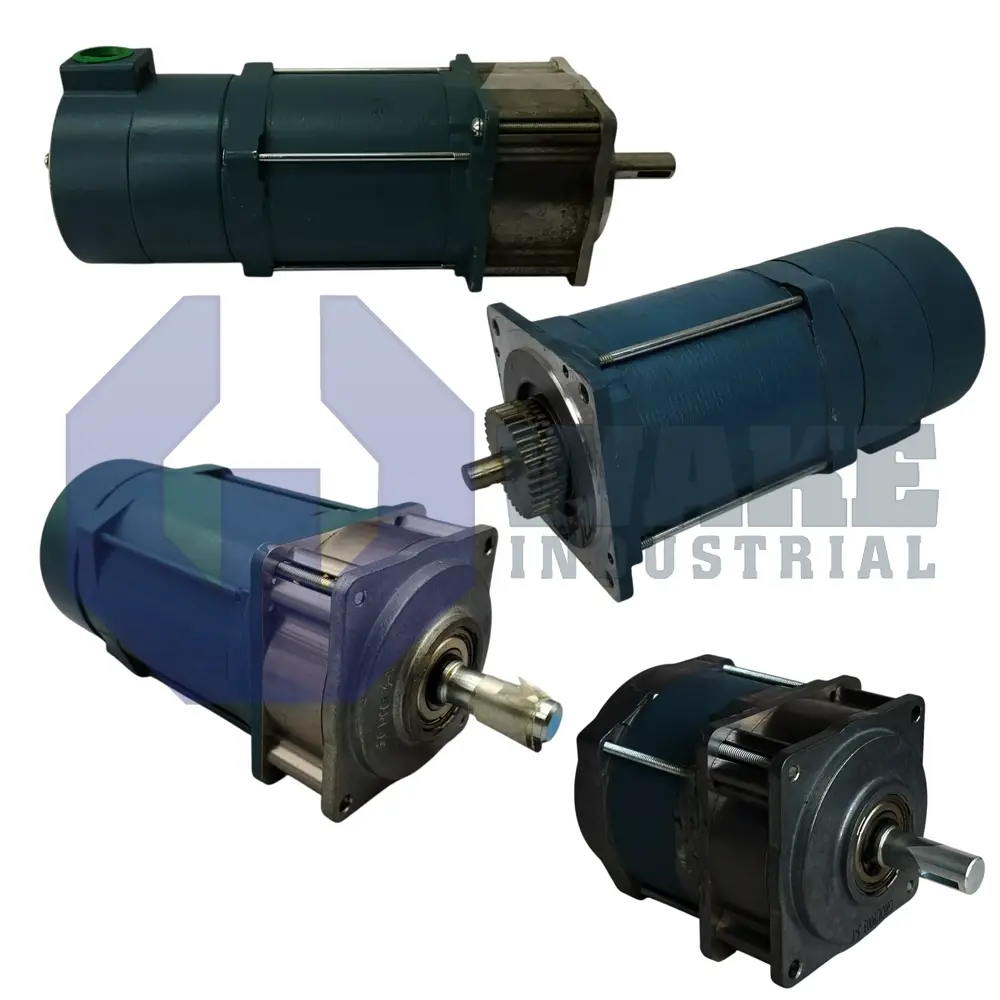

The Danaher SS150-P1 represents a dependable synchronous motor from the SLO-SYN series designed for multiple industries.

This motor comes with standard DC input voltages from 3.9 volts to 8 volts, depending on the selected model version. Its power design offers both efficiency and a range of applications. The product works at source currents of 1 A up to 6.8 A in each winding to enable selection of optimal performance levels for diverse applications. The motor system includes six unipolar leads that function with many different motor control mechanisms. Each winding block of the SS150 generates between 0.19 ohms and 15.9 ohms of resistance while phase inductance spans from 0.85 mH up to 61 mH. These values represent the selectable torque-speed capabilities of the SS150 product line. The motor maintains precise accuracy measurements at 5% rating, which provides stable outcomes for systems needing precise positioning.

The SS150-P1 mechanical structure includes a 0.750-inch (19.1 mm) shaft diameter integrated with shaft lengths from 12 to 16 inches, depending on the model type. The terminal box dimensions adhere to KST series norms in models KST061, KST062, and KST063 to standardize motor connections and the installation process. The motor arrives equipped with basic phase-shifting parts such as a 370 VAC capacitor in kit number 201053-063 that ensures effective three-phase power operations. The motor shows load inertia values between 6.7 and 23 kg-cm² with normal torque offering 99 Ncm up to 700 oz-in across similar motor models. It can be purchased at Wake Industrial with a one-year warranty.

SS150-P1 Technical Specifications

Accuracy:	±5% of rating
Torque:	99 N·cm to 700 oz·in
Lead configuration:	6 leads (unipolar)
Wiring configuration:	R/R/C
Load inertia:	6.7–23 kg·cm²
Shaft diameter:	19.1 mm (0.750 in)
Nominal DC voltage:	3.9–8 V
Inductance per phase:	0.85–61 mH
Resistance per winding:	0.19–15.9 Ω
Phase-shifting kit:	370 VAC capacitor + resistor (kit 201053-063)
Current per winding:	1–6.8 A
Shaft length:	12–16 in

Frequently Asked Questions about SS150-P1

Q: What is the voltage range for the SS150-P1 motor?

A: The SS150-P1 operates with DC input voltages ranging from 3.9V to 8V, depending on the selected model, offering flexibility for different system requirements.

Q: How many leads does the SS150-P1 motor include?

A: The SS150-P1 features six unipolar leads, allowing it to interface with a broad range of motion control setups and configurations.

Q: What type of torque and accuracy does the SS150-P1 deliver?

A: The SS150-P1 maintains torque outputs up to 700 oz-in and offers positioning accuracy rated within 5%, making it reliable for precise motion applications.

Q: What are the shaft and connection specs for the SS150-P1 motor?

A: The SS150-P1 includes a 0.750-inch (19.1 mm) shaft and follows KST terminal box standards, ensuring easy integration with KST061, KST062, and KST063 systems.

Q: Does the SS150-P1 support three-phase power operation?

A: Yes, the SS150-P1 supports three-phase operation with components like the 370 VAC capacitor from kit 201053-063, enabling effective phase-shifting performance.

Internal Product Review

‘‘The SS150-P1 is a versatile and precise synchronous motor built for applications where stable positioning and configurable performance matter. Its flexibility across voltage and current ranges makes it ideal for a wide variety of automation systems.’’
