VT-VSPA1-1-1X

Name: VT-VSPA1-1-1X
Brand: Bosch Rexroth Indramat
Price: 428 USD
Availability: InStock
Rating: 4.4 (15 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R900033823

In-Stock, Ships in 3 Days

Current response time:

6 Minutes 7 Seconds

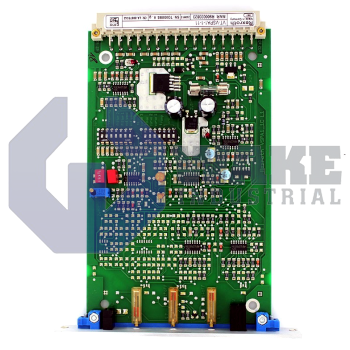

The VT-VSPA1-1-1X amplifier card is manufactured by Bosch Rexroth Indramat. This unit has a 10 to 19 component series designation, and operates with at max 50 VA power consumption, 1.8 A current consumption, and an operating voltage of 24 VDC.

Preparing your secure checkout page...

Warranty

Wake Industrial Warranty

Shipping

Payment

Surplus

Have a VT-VSPA1-1-1X to sell?

To Speak to a sales representative for pricing and lead time:

Phone

1-888-551-3082

International

1-919-443-0207

sales@wakeindustrial.com

Description
Revisions
Specs
FAQ

Product Description

The VT-VSPA1-1-1X is a proportional valve amplifier from Rexroth, Indramat, Bosch. This is a device in the VT-VSPA1 series. This unit is an analog part with a 32 pin male connector process connection. This valve amplifier has a current rating of 1.8A and with a current output of 800 – 1600mA Solenoid. It also features a voltage rating of 24VDC and a power rating of 50VA. The unit’s frequency rating is 250 Hz clock while its temperature rating is 0 to 50 degrees Celsius.

This proportional valve amplifier from Bosch Rexroth has a component series of 1X or 10 to 19. The operating voltage of the unit is +24 VDC +40 % - 5%. The unit features pressure valves for operation control and other functions can be factory assigned. The unit features differential input so one can easily switch between current input and voltage.

The VT-VSPA1-1-1X valve amplifier from Rexroth Bosch features a front plate and a multipoint connector to allow an easy user interface. It can be adjusted for up and down ramps thanks to the built-in ramp generator. The unit also features a clocked output stage. There is a LED indicator lamp which allows for a “ready for operation” signal. The unit also comes equipped with protection against reverse polarity for its supply of voltage. More protection features include protection of the solenoid cable against short circuit damage. There is also a fail-safe to detect if the solenoid cable breaks along with current input of 4 to 20mA along with a front panel. The unit is small and lightweight weight it at approximately 0.1kg and has dimensions of 182 by 20 by 128.4 mm in depth, width and height respectively.

VT-VSPA1-1-1X Technical Specifications

Component Series:	10 to 19
Card dimensions:	Euro-card 100 x 160 mm, DIN 41494
Operating voltage:	24 VDC
Max. power consumption:	50 VA
Max. current consumption:	1.8 A
Fuse:	2.5 A slow-blow
Ramp time (setting range):	t 30 ms to approx. 1 s or 5 s
Type of connection:	32-pole male multipoint connector, DIN 41612, design D
Admissible operating temperature range:	0 to 50 degrees celsius
Weight:	0.1 kg

Frequently Asked Questions about VT-VSPA1-1-1X

Q: Is this model adapatable to different input signals?

A: Yes, the VT-VSPA1-1-1X is adaptable to different signals inputs because of its differential input feature that allows switching between current and voltage inputs.

Q: Can users configure this model for specific applications?

A: Certainly, the VT-VSPA1-1-1X can configured as per various application because of the ramp generator that provides precise adjustments to up and down ramps. This ensures customzation and tailoring to suit individual applications.

Q: Is there any protection feature available for solenoid cables?

A: For voltage supply, the valve amplifier includes protection against reverse polarity. In addition, the solenoid cables are protected against short circuit damage.

Q: Is there any fail safe mechanism in the system?

A: Yes, the system provides a fail safe mechanism that can detect solenoid cable breaks. Reliability is ensured as the system provides early indication of the potential issues.

Q: What is the purpose of the clocked output stage of the VT-VSPA1-1-1X?

A: The VT-VSPA1-1-1X's clocked output stage provides controlled and precise operation which contributes significantly to the overall performance of the amplifier.
