VT-HNC100-1-23/W-08-P-0

Name: VT-HNC100-1-23/W-08-P-0
Brand: Bosch Rexroth Indramat
Price: 241 USD
Availability: InStock
Rating: 4.4 (29 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R900958999

In-Stock, Ships Today

Current response time:

4 Minutes 36 Seconds

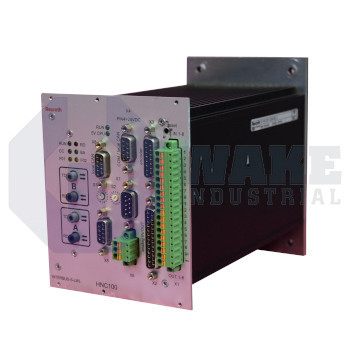

The VT-HNC100-1-23/W-08-P-0 digital axis controller is manufactured by Bosch Rexroth Indramat. This unit falls in the 1X 10 to 19 component series, a version for 1 hydraulic axis. Bus connection and installation specifications are factory assigned and unique to each unit.

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Warranty

Wake Industrial Warranty

Shipping

Payment

Surplus

Have a VT-HNC100-1-23/W-08-P-0 to sell?

To Speak to a sales representative for pricing and lead time:

Phone

1-888-551-3082

International

1-919-443-0207

sales@wakeindustrial.com

Product Description

Bosch Rexroth is the most creative and cost-effective industrial equipment company in the world. Among the company's products are digital axis control, synchronous motors, spindle motors, drive controllers, inverter modules, power supply motors, and brake choppers.

The VT-HNC100-1-2X/W-08-P-0 model contains 8, 16, or 24 switching inputs that are flexible up to 1.5 mm². The model has two inductive position transducers with a maximum current of thirty milliamperes per channel and a voltage supply of two volts. The VT digital axis control complies with EC guidelines and meets all control requirements for hydraulic and electric drives. The model features an EnDat digital position transducer with a maximum input signal voltage of (Uo (operating voltage) − 1) V. Typically, a pin has both current and voltage inputs so that each input may be utilized concurrently. The model is designed only for integration into a machine or system, or for assembly with other components to create a machine or system. The axis control may only be activated if it has been incorporated into the machine or system for which it was built. The VT digital axis control is equipped with 1 MB of Flash EPROM, 8 KB of EEPROM, and 256 KB of RAM, and must be used between 0 and 50 degrees Celsius.

The model VT-HNC100-1-2X/W-08-P-0 is equipped with a 16/32-bit MC68376 processor and is intended for an open and closed-loop position, velocity, and pressure control of electrohydraulic axes. The operating voltage range of the device is 18 to 36 VDC, and it has four analog current inputs with input currents ranging from 4 mA to 20 mA. The model has both an incremental and an SSI transducer. This product (VT-HNC100-1-2X/W-08-P-0) is distributed worldwide by Wake industrial with a replacement warranty.

VT-HNC100-1-23/W-08-P-0 Technical Specifications

Digital NC control HNC100:	Version for 1 hydraulic axis
Application:	Presses, Transfer Lines, Rail-Bound Vehicles
Number of Switching Inputs:	8
Number of Inductive Position Transducers:	2
Operating Voltage (VDC):	18 to 36
Operating Temperature (° C):	0 to 50
Flash EPROM:	1 MB
EEPROM:	8 KB
RAM:	256 KB
Number of Analog Current Inputs:	4

Frequently Asked Questions about VT-HNC100-1-23/W-08-P-0

Q: How many analog voltage inputs does the VT-HNC100-1-23/W-08-P-0 have?

A: The VT-HNC100-1-23/W-08-P-0 has four differential type analog voltage inputs. The inputs have a measurable input voltage ranging between +10 V and -10 V and an input resistance of 200 kiloOhms with a tolerance of +/-2%.

Q: What are the system requirements of the VT-HNC100-1-23/W-08-P-0?

A: The VT-HNC100-1-23/W-08-P-0 needs an IBM PC or a compatible system and Windows 9x/NT operating system. Other system requirements are an Intel 80286 or higher processor, minimum 8 MB RAM and 10 MB free hard disk space.

Q: What are the monitoring functions of the VT-HNC100-1-23/W-08-P-0?

A: The VT-HNC100-1-23/W-08-P-0 is equipped with dynamic error monitoring function. The controller also monitors for cable breaks in incremental and SSI encoders as well as sensors with 4 to 20mA output.

Q: What serial interface does the VT-HNC100-1-23/W-08-P-0 have?

A: The VT-HNC100-1-23/W-08-P-0 has a Profibus DP serial interface. This interface has a maximum transfer rate of 12 MBaud.

Q: What is the power consumption of the VT-HNC100-1-23/W-08-P-0?

A: The VT-HNC100-1-23/W-08-P-0 has a power consumption of 8 W, This is the power consumption taking the power of the connected sensors or actuators into consideration.
