Product Description

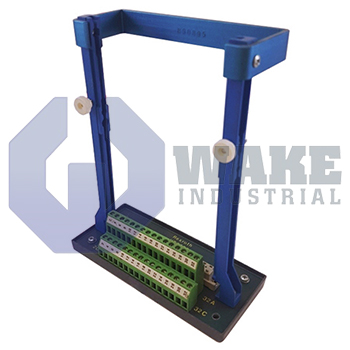

The VT 3002-1-20-32D electronic amplifier card stand from the Rexroth Bosch Group comes in a Form D double Euro-card format. The card holder features a Form D type connection with a 32-pin socket connector. The unit renders a stable platform for anchoring field connections with a simple connection. It can be snapped on or screwed using screw terminals on to a hat rail. The card holder can also be mounted vertically on the hat rail with an additional adapter.
The 20X component series card holder weighs 0.8 KG. The holder has two rows (rows a and c) for inserting the amplifier cards into it. The accessory makes use of a maximum 4mm2 cross-sectional area plug-in screw terminals for its socket strip type of connection. The screw terminals offer assurance of a robust field connection with the card. The unit comes with a rugged base that provides the utmost stability and has a lever actuation mechanism to lock and release the card. The yellow-colored operating levers must be pushed downwards for complete insertion of the card. The two-card guide rails have a connection web in between them that can either be removed or fixed on to the other side for connecting the cables.
The amplifier card holder is intended for use with the VT 3000 series of analog amplifiers from the manufacturer in switching or control cabinets. The pushbuttons on either side prevent undue stress on the amplifier’s faceplate when the board is released from the holder. The rectangular unit comes in 140mm length and 63mm breadth. It features a 48VAC/VDC terminal voltage rating and 4A current carrying capacity. The card holder has an ideal operating temperature range that is between -20° and +70°C. The company can send the card holder to any address worldwide and it offers a one-year warranty period for the product.
