VAM41.1-PB-NA-NN-TA-VB-BA-1608-NN

Product Description

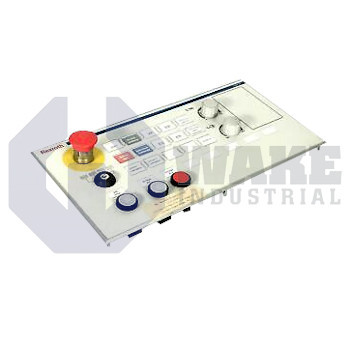

The VAM41.1-PB-NA-NN-TA-VB-BA-1608-NN is a VAM41 series machine operator terminal manufactured by Bosch Rexroth. The device has a 4-stage key switch along with a keypad comprising of 15 illuminated keys. The unit also has two override rotary switches and an E-STOP pushbutton. There are two connectors and several digital inputs and outputs on the rear side of the product. The terminal helps in operating various control units in machines and performs control tasks in industrial machinery such as milling machines, lathes and machine centers. Spare accessories and parts, if any are used, must only be those approved by the manufacturer.

The terminal has a mounting cut of 375 x 178mm (W x H) and an installation depth of 80mm including the PROFIBUS DP connector. The device weighs approximately 1,380 grams. The unit has a width equivalent to the width of the manufacturer’s BTV 40 operator terminal. The product has a set of eight digital 24V outputs and 16 digital 24V inputs on its rear side. There are eight cutouts for mounting the different indicators and control units. The machine operator terminal needs approval by a testing agency or an authority for use in residential areas. It can be configured depending on the modules used and based on the requirements of the project.

The device has a maximum power consumption of 1.7A and a 24VDC PELV logic voltage supply. The fine wires of the product have a maximum connection cross-section of 2 x 16 AWG. The product has an occasional 3.50mm amplitude maximum vibration between 5 and 9Hz, both values inclusive. The machine control terminal is CSA Certified and UL Listed. For UL/CSA compliant operation, the unit must make use of only 60/75°C copper and Class 1 or equivalent wires. The terminal must be stored between a temperature of -25°C and +75°C. The product can be sent to any address worldwide and has a one-year Wake Industrial warranty.
