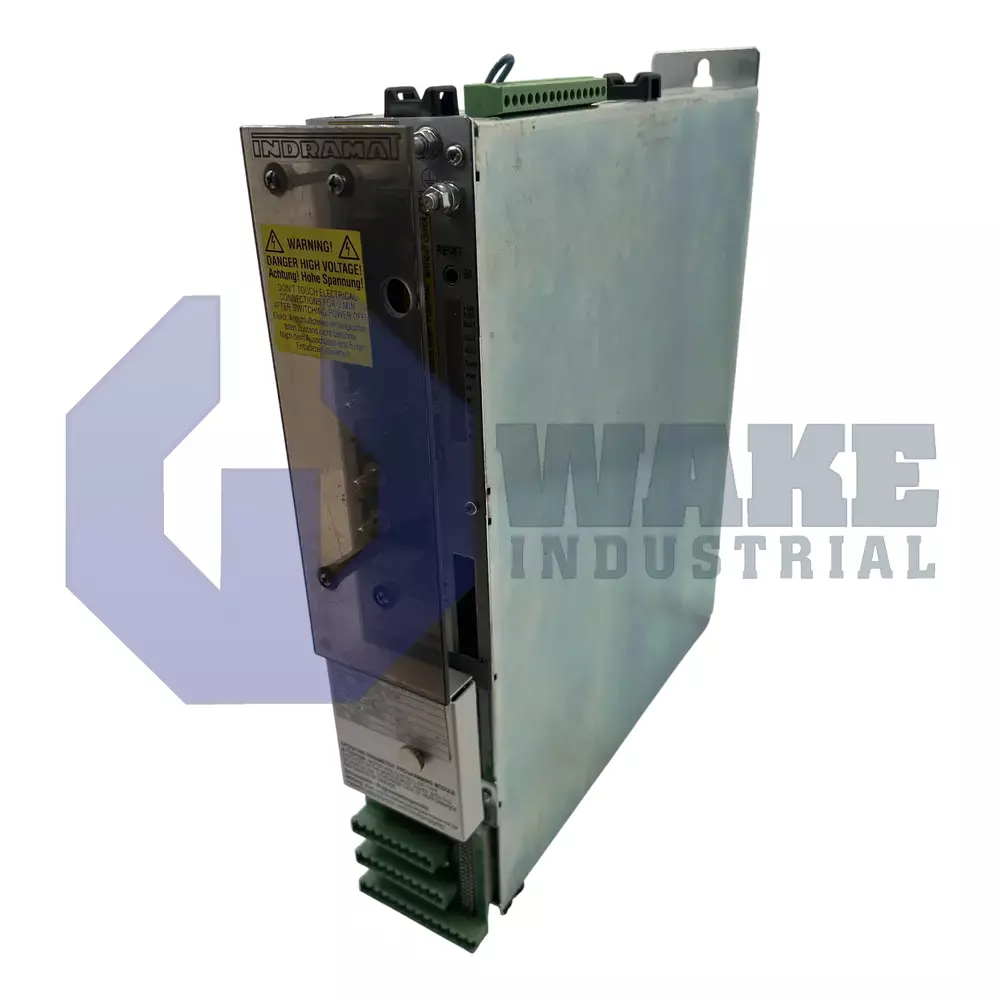

TDM3.3-020-300-W0

Name: TDM3.3-020-300-W0
Brand: Bosch Rexroth Indramat
Price: 465 USD
Availability: InStock
Rating: 4.4 (7 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911248070

In-Stock, Ships Today

Current response time:

5 Minutes 26 Seconds

The Indramat's TDM3.2-020-300-W0 drive module has a 20 A peak current and support for motor feedback cables up to 75 m. The servo module is optimized for 300 V DC input.

Preparing your secure checkout page...

Warranty

Wake Industrial Warranty

Shipping

Payment

Surplus

Have a TDM3.3-020-300-W0 to sell?

To Speak to a sales representative for pricing and lead time:

Phone

1-888-551-3082

International

1-919-443-0207

sales@wakeindustrial.com

Description
Specs
FAQ

Product Description

The TDM3.2-020-300-W0 servo drive module by Indramat is a robust and efficient drive solution for industrial automation systems. It is optimized for applications requiring precise motor control, reliable performance and energy efficiency.

The TDM series drive module operates under natural convection cooling and is designed for a maximum peak current of 20 A and a continuous current of 15 A. It is rated for a link circuit DC voltage of 300 V allowing for efficient energy use. The unit delivers a continuous power output of 6 kW with power losses of around 110 W. It is compact yet powerful and weighs 8 kg. The signal processing components draw a current of 400 mA on + 24 V load voltage, 120 mA on + 15 V and 50 mA on - 15 V. External consumption terminals at X43 offer capacities of 50 mA for + 24 V, and 15 mA each for both + 15 V and -15 V contributing to its versatility in power management. The module supports Indramat motor feedback cables up to 75 m in length providing flexibility in installation and setup.

This TDM3.2-020-300-W0 servo drive module operates effectively in ambient temperatures ranging from +5 degrees C to +45 degrees C with a maximum permissible temperature of 55 degrees C under reduced capacity. It is built to withstand storage temperatures between - 30 degrees C and + 85 degrees C and can be mounted at altitudes up to 1000m without performance degradation. It comes with an insulation category compliant with DIN VDE 0110 standards. The module is protected up to IP10 per DIN 40 050. The unit also includes a motor thermostat function that triggers at a critical temperature ensuring safe shutdown within one minute to protect both the drive and machinery.

TDM3.3-020-300-W0 Technical Specifications

Peak Current:	20 A
Operating Temperature Range:	+5 to +45 degree centigrade
Continuous Current:	15 A
Link Circuit D.C. Voltage:	300 (~ 15%) V
Power:	6 kW
Power Loss:	110 W
Weight:	8 kg
Insulation Class:	C
Protection Rating:	IP10
Cooling:	Natural Ventilation

Frequently Asked Questions about TDM3.3-020-300-W0

Q: What are the cooling specifications for the TDM3.2-020-300-W0?

A: This drive module uses natural convection cooling, allowing it to handle peak currents up to 20 A. It offers reliable and efficient cooling without the need for additional equipment.

Q: What voltage requirements does the TDM3.2-020-300-W0 have?

A: The module operates at a 300 V DC link circuit voltage, which provides high energy efficiency. This setup enables a continuous power output of 6 kW for demanding applications.

Q: What are the environmental limits for operating the TDM3.2-020-300-W0?

A: This drive module operates in temperatures between +5 degrees C and +45 degrees C, with a reduced capacity maximum of 55 degrees C. It also withstands storage temperatures from -30 degrees C to +85 degrees C.

Q: How does the TDM3.2-020-300-W0 ensure safe operation?

A: The TDM3.2-020-300-W0 includes a motor thermostat function that triggers a shutdown at critical temperatures. This feature ensures protection for both the drive and connected machinery.

Q: What connectivity options does the TDM3.2-020-300-W0 support?

A: The TDM3.2-020-300-W0 supports Indramat motor feedback cables up to 75 m in length. This allows flexible installation and setup in varied industrial environments.

Internal Product Review

‘‘The TDM3.2-020-300-W0 servo drive module is ideal for industrial automation. It delivers 15 A continuous current and up to 6 kW power output. Its efficient natural convection cooling and motor thermostat protection provide robust reliability. This 8 kg module ensures versatile performance with 300 V DC operation.’’
