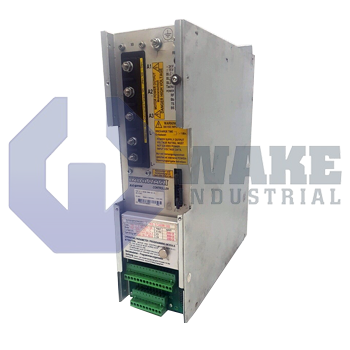

TDM 2.1-015-300-W0

Product Description

This is the first module in the second series of the Indramat servo drive modules. The module, TDM 2.1-015-300-W0, is classified based on its feedback unit on MAC motors as 1 with a tacho feedback but without an incremental encoder. The motor cooling mode of the TDM 2.1-015-300-W0 is natural convection. Its current is at 15A, peak current at 15A and the continuous current at 15A while its code for motor and amplifier combination is stated and recorded by Indramat as 15. Its link circuit voltage DC is 300 (±15%) while power is 4.5kW and power loss is 110W. It weighs 9kg.

Without external load, the current consumption of its signal processing at various measuring levels such as + 24V Load voltage is 750 [350] mA, + 15V Measuring voltage is 140 mA and - 15V Measuring voltage is  60 mA. The Current capacitance of the voltages of the TDM 2.1-015-300-W0 at terminal 5 times its external consumption at + 15V Measuring voltage is 15mA and - 15V Measuring voltage is 15mA. Notwithstanding, its fan connection frequency remains 50-60Hz with a minimum adjustable current ired of 1.5A. Likewise, the pronounced and documented code for the TDM 2.1-015-300-W0’s input weighing by Indramat is 300.

The operational ambient temperatures when data is rated are between 5⁰C and 45⁰C. Temperatures rise to 55⁰C when data is reduced. The TDM 2.1-015-300-W0 should be stored and transported in temperatures ranging from -30C and +85⁰C while 1000m above sea level is the highest elevation allowed when rated data is reduced. Its humidity classification is F as per DIN 40 040. It's insulation category is C as per DIN VDE 0110 and protection type is IP 10 in accordance with DIN 40 050. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
