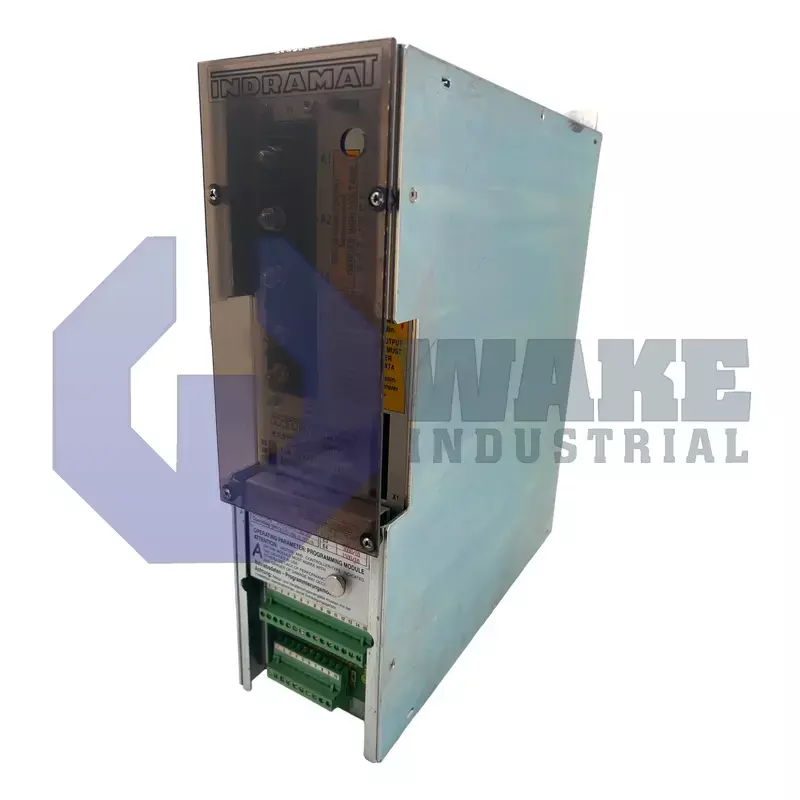

Name: TDM 1.2-30-300-W0
Brand: Bosch Rexroth Indramat
Price: 266 USD
Availability: InStock
Rating: 4.3 (9 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911219099

In-Stock, Ships 1-2 Days

Unused Original Box Pricing Available!
Request a Quote!
Call for Expedited Shipping and Product Condition Options

The TDM 1.2-30-300-W0 Servo Control drive is manufactured by Bosch Rexroth Indramat. The drive operates with a type current of 30 A, DC 300 V link circuit voltage, a Natural Convection cooling system, and its Rated Connection Voltage for Built-in Fan is Dropped with Natural Convection.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The TDM 1.2-30-300-W0 servo drive is a Rexroth Indramat product that uses natural convection cooling mechanism. The servo drive is widely used in the automotive industry and in CNC machines. It has an X2 connection port for incorporating the programming personality module. This module has a rating plate that gives the names of the servo drive and motor in which it is used, the peak and continuous current ratings, operating speed of the motor, etc. The TS red LED of the servo drive lights up when it is operating in the ambient temperature range and turns off in case of excess temperature. The AC drive is offered with a warranty period of one year.

The X5 terminal of the servo drive has 15mA current capacitance at +/-15V measuring voltage. It has a power rating of 9kW and a power loss of 160W with 25A continuous current rating. The device encompasses Class C insulation as per DIN VDE 0110 specifications. The product can function as a tandem drive or a master-slave drive. The power section of the unit must be isolated from the mains supply through a mains contactor so that the servo drive can be stopped safely. An emergency-stop situation cannot help to get rid of the malfunctioning of the servo drive.

The programming module MOD 1 must always be under the X1 bus connection of the master servo drive when it is used in master-slave operations. The master and slave drives can rotate in the same or opposite directions based on the inclusion or exclusion of a jumper connection. The MOD programming module of the servo drive helps in lessening drive repair time and matching the drive for the right motor. It can be safely dispatched to any place in the world with the help of our delivery network.

TDM 1.2-30-300-W0 Technical Specifications

Cooling:	Natural Convection
Maximum Elevation Height:	1000 MSL
Power Rating :	9 kW
Power Loss :	160 W
Continuous Current Rating:	25 A
X5 Terminal Current Cpacitance :	15 mA
Insulation Class:	C
Protection Rating:	IP10
Operating Temperature Range:	(+5 to +45) degree centigrade
Allowable Relative Humidity:	95%

Frequently Asked Questions about TDM 1.2-30-300-W0

Q: What cooling mechanism does the TDM 1.2-30-300-W0 servo drive utilize?

A: The TDM 1.2-30-300-W0 servo drive uses a natural convection cooling mechanism, making it efficient for various applications.

Q: How can you identify the motor details and ratings of the TDM 1.2-30-300-W0?

A: The programming personality module has a rating plate, displaying the names of the servo drive and motor, peak and continuous current ratings, and the operating speed of the motor.

Q: What does the TS red LED on the TDM 1.2-30-300-W0 servo drive indicate?

A: The TS red LED lights up when the servo drive operates within the ambient temperature range. If the LED turns off, it indicates excess temperature.

Q: How should the programming module MOD 1 be connected during master-slave operations?

A: The MOD 1 programming module should always be connected under the X1 bus connection of the master servo drive during master-slave operations.

Q: How does the MOD programming module benefit the TDM 1.2-30-300-W0?

A: The MOD programming module reduces drive repair time and ensures compatibility, matching the drive to the appropriate motor.

Internal Product Review

‘‘The TDM 1.2-30-300-W0 excels in the automotive and CNC sectors. With its natural convection cooling and MOD programming module, it optimizes drive-motor compatibility and reduces repair times. Highly recommended for technical applications.’’
