Product Description

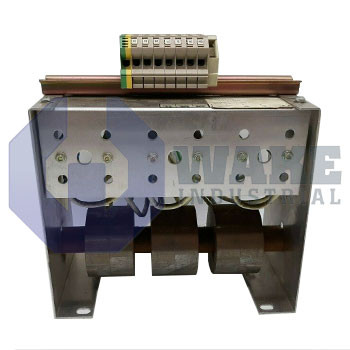

The RZM01.1-6-010 motor filter from Bosch Rexroth is used with the manufacturer’s RD 500 drive system. The product is a part of the RZM range of such offerings from the manufacturer. This device helps to curb excess transient voltages. The unit minimizes the steep switching flanks in pulse converters especially when there are long motor lines. The filter accessory supports a maximum output frequency of 200Hz when the pulse frequency is 8kHz. The cumulative length of all the cables used to connect the motor, in this case, is 150m. The filter is used with a converter that has a power class of 1.5/3.0/4.0.
This motor filter input is connected to the U1, V1 and W1 terminals of the converter. The product may get damaged if the components of the converter are overloaded. The electric drive used in the drive incorporating the device must be worked on only by trained and qualified personnel. The accessory should be utilized only after reading the associated operating, safety and maintenance instructions. The unit has to be made to function only with equipment that is installed in commercial machinery. The filter has to be installed by taking care that the shield between the converter and the motor is not interrupted.
The filter is capable of mitigating the leakage currents that trigger on its motor lines. The accessory ensures that there is minimum voltage fluctuation at the motor end. The connected converter has a power loss of 120W. The product encompasses a type label with details of its designation, pulse frequency, line length, nominal voltage and maximum frequency. The device has an overall length of 300mm. The protective earth of the converter and the unit are connected. The filter should be handled only after half an hour of switching OFF the power supply so that its capacitors discharge fully. This motor filter with a one-year warranty can be shipped internationally.
