PSI6100.100-L1

Product Description

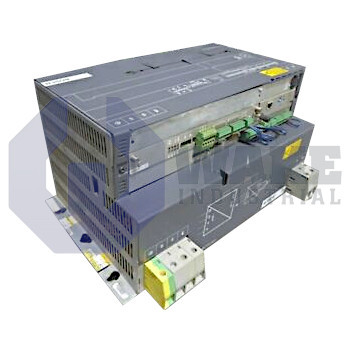

The PSI6100.100-L1 is a medium-frequency inverter with an integrated control function manufactured by Bosch Rexroth Company. It is intended for connection to PSG 3000 welding transformers for resistance metal welding tasks. It features a welding control, separate control and monitoring functionalities, and functionality that is designed to offer maximum welding optimization. The benefits of using this MF-inverter are easy programming, operating, and diagnostics thanks to a user-friendly operator interface, less cabling due to system component integration, and straightforward integration into a portable welding box system. It serves to control PSG 3000 welding transformers on the factory floor.

The PSI6100.100-L1 features an air cooling method. This requires the provision of ample ventilation for optimum airflow. It has a rated voltage of 400 V to 480 V, 50/60Hz and a continuous thermal current of 110 A. some of the compatible welding transformers include PSG 3050.00 A and PSG 3050.10 A. the basic construction of this MF-inverter consists of mounting options, connection to welding transformer, weld timer, slots for interfaces, and a battery compartment. It is a 3-phase MF inverter that is designed for recessed mounting in a switchgear cabinet. With an IP 20 protection class, it is to be installed in a cabinet with IP 54 degrees of protection.

The PSI6100.100-L1 electrical parameters include a maximum secondary current of 20 kA, a nominal system current of 110 A, and a 24 V DC voltage supply. Ambient conditions include a maximum installation height of 2000 meters above sea level, relative humidity of 90% at 20 degrees, and a storage temperature of -25 to 70 degrees. The maximum temperature of the cooling air should not exceed 45 degrees and the maximum operating temperature is capped at 55 degrees. This product is available from Wake Industrial with a one-year warranty period.
