MSM041B-0300-NN-M0-CH1

Name: MSM041B-0300-NN-M0-CH1
Brand: Bosch Rexroth Indramat
Price: 478 USD
Availability: InStock
Rating: 4.4 (25 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911325144

In-Stock, Ships 3-5 Days

Unused Original Box Pricing Available!
Request a Quote!
Call for Expedited Shipping and Product Condition Options

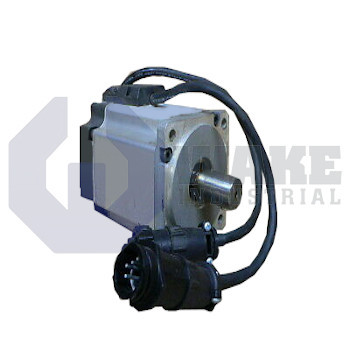

MSM041B-0300-NN-M0-CH1 MSM Servo Motor is manufactured by Rexroth, Indramat, Bosch. This motor has a Multiturn, Absolute encoder and a Cable Tail electrical connection. This motor comes with a Smooth, Without Sealing Ring shaft and is Equipped with a holding brake.

Preparing your secure checkout page...

Warranty

Wake Industrial Warranty

Shipping

Payment

Surplus

Have a MSM041B-0300-NN-M0-CH1 to sell?

To Speak to a sales representative for pricing and lead time:

Phone

1-888-551-3082

International

1-919-443-0207

sales@wakeindustrial.com

Description
Revisions
Specs
FAQ

Product Description

used in various applications across industries. Much of their products make work easier and reduce production cost while providing faster and more reliable machines. Among these products are their synchronous motors. The MSM041B-0300-NN-M0-CH1 is among them. It falls under the MSM series and features a dynamic response, IP54 degree of protection, and a compact design. This type has a continuous power of 750W, continuous torque 2.4Nm, and a maximum torque of 7.1NM. The maximum speed of this motor is 4,500rpm.

The MSM041B-0300-NN-M0-CH1 is CSA and UL certified which means it can only be used in NFPA 79 applications only. Like other MSM motors, there are three mounting positions for the motor. The IM B5, IM V1, and IM V3. When mounted in position IM V3, there is a risk of fluid entering the motor enclosure which can cause damage. At times, gearboxes can be mounted on the motor. It is important to note that this can cause thermal overload. To mitigate this, reduction of specified performance is required. Also, when mounting ensure that there is enough space between the motor and the mounting surface for maximum air circulation.

The MSM041B-0300-NN-M0-CH1 features a size construction of 041, MSM041 winding type and a cooling mode of natural convention. It also comes with an optical and multiturn absolute encoder, cable tail electrical connection, and a plain shaft without shaft sealing ring. The MSM041B-0300-NN-M0-CH1 also features an electrical release 2.45Nm holding brake. Other crucial features include a mass of 3.1kg, maximum installation elevation of 1000meters, and a power wire cross section of 0.75mm². For peace of mind it comes with a one year warranty.

MSM041B-0300-NN-M0-CH1 Technical Specifications

Product :	Motor
Rated power:	750 W
Cooling:	Natural convection
Encoder :	17-bit Multi-turn absolute
Shaft:	Smooth
Electrical Connection:	Cable connection
Holding brake:	2.45 Nm
Protection rating:	IP54
Max speed:	4500 RPM
Pole pairs:	4

Frequently Asked Questions about MSM041B-0300-NN-M0-CH1

Q: What are MSM motor features?

A: MSM motor features include compact construction, high-precision optical encoders, IP54 protection class, and plug connector for external connections.

Q: What is the permitted range for relative humidity?

A: The permitted range for relative humidity is 5 to 95%.

Q: What are torque ratings for the motor?

A: The rated torque is 2.4 Nm and the peak torque is 7.1 Nm.

Q: What is the minimum wire size that should be used for the power connection?

A: The cable used for the power connection should have at least 0.75 mm2 cross-section.

Q: What is the motor weight?

A: Weight of the motor only is 2.3 kg, which increases to 3.1 kg with the holding brake.
