MSM041B-0300-NN-M0-CH0

Product Description

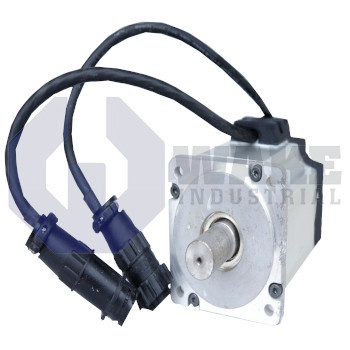

This is a synchronous motor produced by Bosch Rexroth Group. It falls under the MSM series of motors which feature a dynamic response, compact design, IP54 degree of protection, and encoders that bolster high accuracy. It is also UL and CSA certified making it a perfect choice for NFPA 79 applications. The MSM041B-0300-NN-M0-CH0 motor can be mounted in three different positions. When the shaft is on the side, bottom, and top side of the motor. These positions are identified as IM B5, IM V1, and IM V3 respectively. Note, when the IM V3 orientation is used, there is risk of the fluid at the shaft entering and causing damage to the motor.

The body of the MSM041B-0300-NN-M0-CH0 is made up of a material that improves its durability and reliability. The connectors are made of polyvinyl chloride resin, while the rest of the construction is a mixture of aluminum (anodized and uncoated), rubber, and polyamide. When mounting ensure that there is enough space for ample air circulation and cooling. In case of gearbox mounting on the motor, it is paramount that the specified performance data is reduced. This is because the gearbox alters heat dissipation which can lead to thermal overload.

The MSM041B-0300-NN-M0-CH0 features a cable tail electrical connection, plain shaft devoid of a shaft sealing ring, optional and multiturn absolute encoder. It also features a natural convention cooling system and has a 041 size construction. The electrical characteristics include a continuous torque at standstill of 2.4NM, maximum current of 12A, and a maximum torque of 7.10NM. Its mechanical characteristics include a weight of 3.1kg, maximum speed of 4,500rpm, ambient operating temperature of 0-40 degrees and ambient storage and transportation temperature of -20 to 60 degrees. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
