MSK101E-0200-NN-S1-AP3-NNNN

Product Description

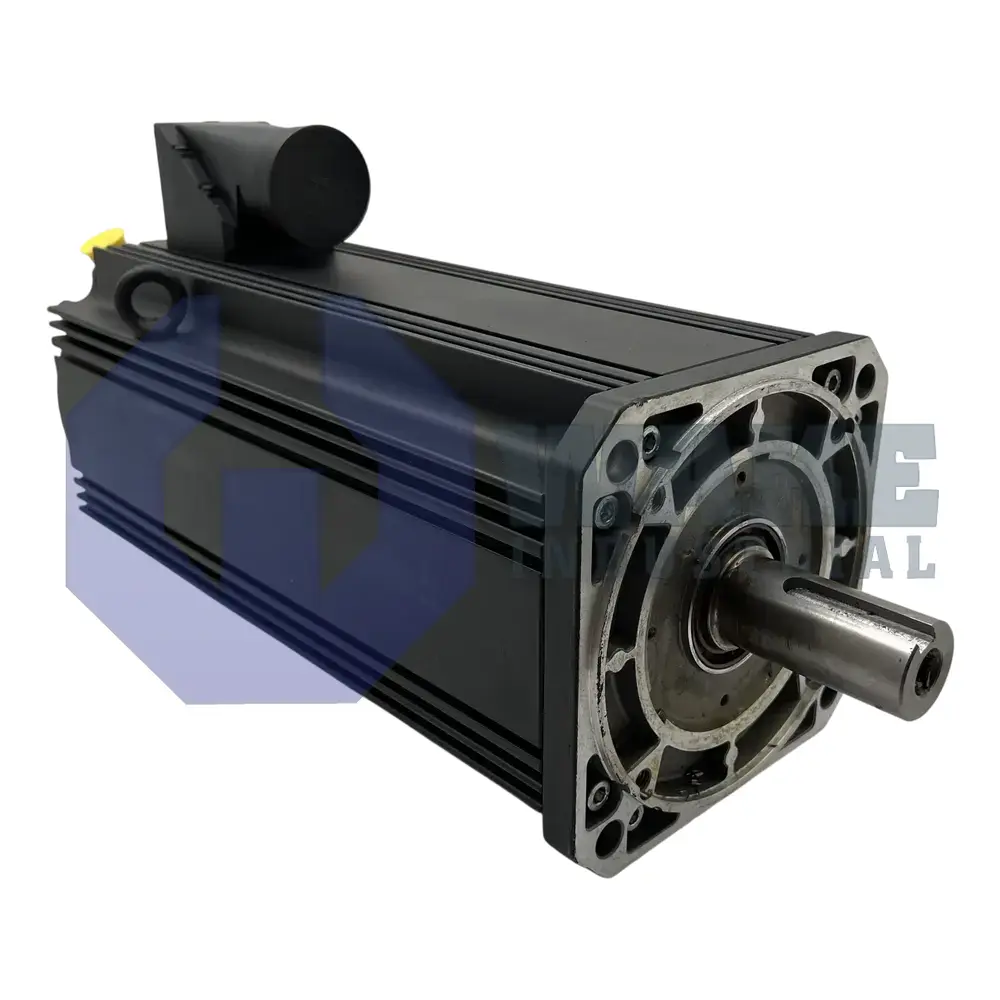

The Bosch MSK101E-0200-NN-S1-AP3-NNNN is an industrial servo motor. Typical applications for servo systems based on MSK motors include machine tools, robotics, metal-forming machines, and printing machines. Depending upon requirements, operators can select from six encoder types for MSK motors. The MSK101E-0200-NN-S1-AP3-NNNN motor features an integrated encoder. The optical singleturn encoder has accuracy of ±120 angular seconds and the maximum encoder speed is 12,000 RPM. The peak current consumption of the encoder is 60 milliamps and the supply voltage range is 7 to 12 Volts. The motor also features an optional holding brake. The brake holding torque is 120 Nm, the voltage rating is 24 Volts DC, and the current draw is 1.46 Amps. The maximum connection time of the brake is 53 milliseconds and the maximum disconnection time is 97 milliseconds.

Operators can select from among four options for the power connection location. On the MSK101E-0200-NN-S1-AP3-NNNN motor, the power connection is situated on side A of the housing (same direction as the motor shaft). The shaft on the MSK101E-0200-NN-S1-AP3-NNNN includes a keyway and a seal. The keyway prevents relative motion and aids effective torque transfer to the connected machine. The MSK101E-0200-NN-S1-AP3-NNNN motor has a standard housing. Operators can also select from other housing designs. Length of the motor is 521 millimeters. The centering diameter is 180 millimeters. The shaft diameter is 38 millimeters. Length of the motor shaft outside the main housing is 80 millimeters. Depending on operational load requirements, operators can employ natural convection or surface cooling for dissipation of heat generated during operation. MSK motors with liquid cooling are also available. The working temperature range for the MSK101E-0200-NN-S1-AP3-NNNN motor is 0 to 40 degrees Celsius.
