MSK100C-0300-NN-M1-AG2-NNNN

Product Description

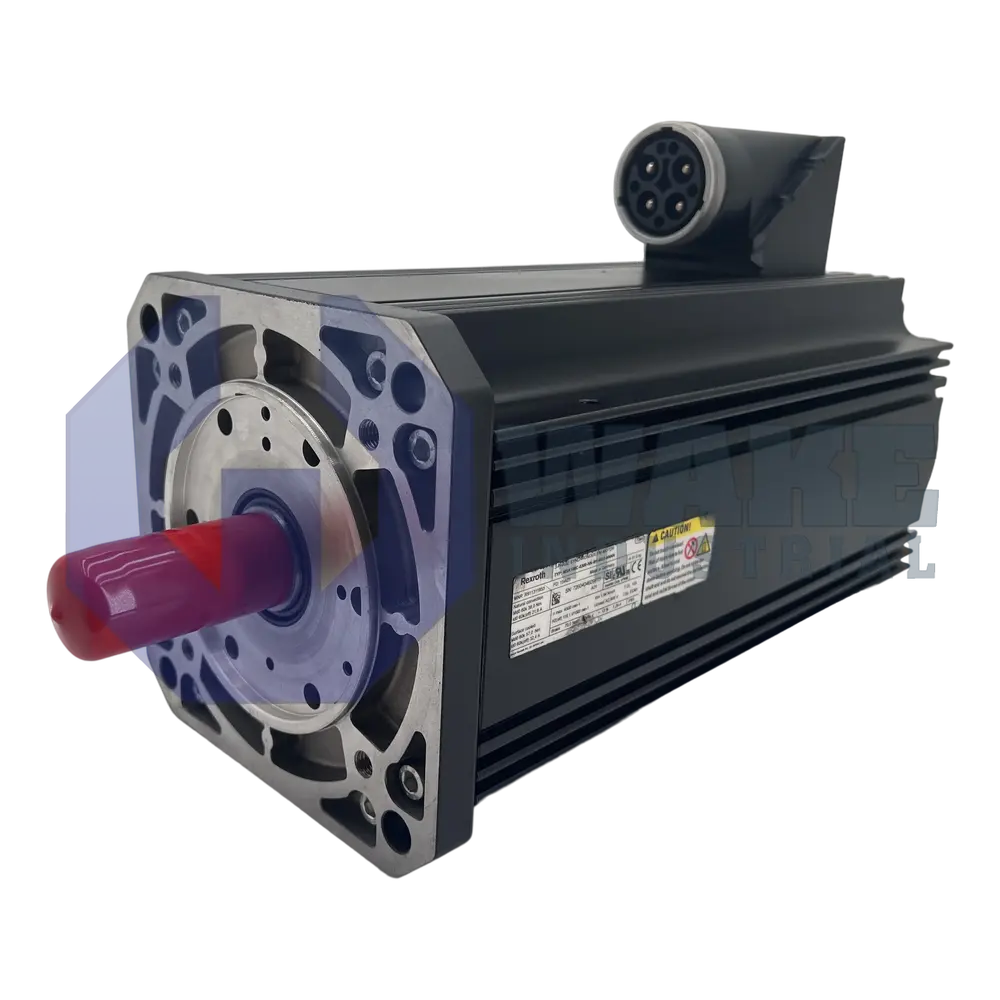

MSK100C-0300-NN-M1-AG2-NNNN is a Bosch Rexroth servo motor from the MSK series. It is designed for convection cooling. The required ambient temperature for rated output is 0 to 40 degrees Celsius. The recommended site elevation for rated output is 0 to 1000 meters. Output for the motor derates if either the temperature or elevation are outside these specified ranges. If both the temperature and elevation exceeds specified limits at the same time, the derating factors multiply i.e. the output derating will increase at a faster rate. The MSK100C-0300-NN-M1-AG2-NNNN has a multiturn absolute encoder. Its peak current draw is 60 milliamps. The voltage range is 7 to 12 Volts. Interface on the encoder is Hiperface. The main power connection is on side A of the housing. A holding brake is installed on the motor.

Holding torque rating of the brake is 70 Nm. The voltage and current ratings are 24 Volts and 1.29 Amps. The specified connection and disconnection times are 53 milliseconds and 97 milliseconds. Moment of inertia of the holding brake is 0.003 kg m2. The motor has a standard housing that complies with IP65 requirements. Its thermal class, as per EN 60034-1, is 155. Wight of the motor is 48.9 kilograms. Length of the motor is 434 millimeters. The motor a plain shaft. A sealing ring is installed on the motor. Diameter of the shaft is 32 millimeters. Centering diameter of the motor is 130 millimeters. The motor housing has a flange with four mounting holes. Size of the flange is 165 millimeter and the diameter of the mounting holes is 15 millimeters. Only trained and experienced personnel should work on the motor.
