MSK076C-0450-NN-M3-UG0-NNNN

Name: MSK076C-0450-NN-M3-UG0-NNNN
Brand: Bosch Rexroth Indramat
Price: 486 USD
Availability: InStock
Rating: 4.4 (32 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911384044

In-Stock, Ships 3-5 Days

Call for Expedited Shipping and Product Condition Options

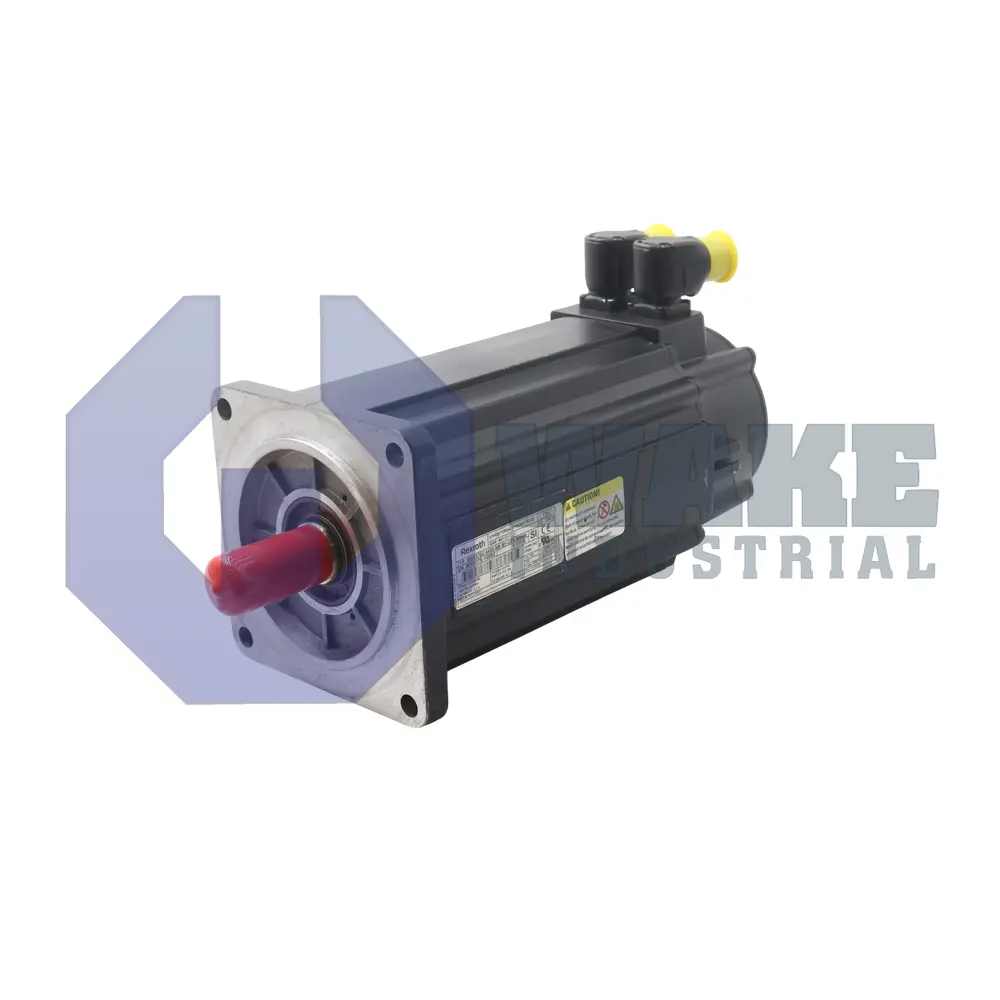

The MSK076C-0450-NN-M3-UG0-NNNN synchronous servomotor produced by Bosch Rexroth uses a plain output shaft. This servomotor relies on an encoder with 12000 min-1 maximum speed for feedback. Its continuous torque in standstill mode at 60K is 12 Nm. The motor features a maximum absolute air humidity of 29 g/m3.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

The MSK076C-0450-NN-M3-UG0-NNNN is one of the most efficient productions of Rexroth Indramat; it is an industrial motor designed to operate as the source of kinetic energy in the industrial servo system. This electrical motor is characterized by high operational dynamics, a compact construction, a high torque density, and the unique ability to maintain a high degree of operational precision due to its new multiturn encoder system. The MSK076C-0450-NN-M3-UG0-NNNN industrial motor is designed to be very safe for production and processing industry operations; however, this safety is only guaranteed if the motor is used according to the instructions stated in the documentation supplied with the motor.

The MSK076C-0450-NN-M3-UG0-NNNN keeps its operational temperature in check through a combination of natural convection and conduction. However, if the motor is being used in industrial conditions that require a continuous start-stop operation or a high radial load, an external air blower can be fitted with the motor to aid its temperature regulation process by surface cooling. The MSK076C-0450-NN-M3-UG0-NNNN industrial motor is about 1292 millimetres long with a centring diameter of 165 millimetres. Also, the total weight of this industrial motor is about 13.8 kilograms. The connection between this industrial motor and the drive controller occurs through a power cable and a motor feedback cable; these two cables enter the housing of the motor through special electrical connectors designed to maintain the high protection class of the motor.

Although the enclosure of the MSK076C-0450-NN-M3-UG0-NNNN is designed to provide a high degree of protection, it is recommended that the continuous usage of this industrial motor is done in industrial environments that meet the 3K4 environmental class.

MSK076C-0450-NN-M3-UG0-NNNN Technical Specifications

Continuous Current at Standstill 100 K:	13.7 A
Insulation class according to DIN EN 60034-1:	155
Maximum Current:	54.9A
Maximum Torque:	43.5Nm
Winding Inductivity:	4.7mH
Discharge Capacity of the component :	6.0nF
Cooling:	Natural convection
Weight:	13.9Kg
Thermal time constant:	25min
Number of pole pairs :	4

Frequently Asked Questions about MSK076C-0450-NN-M3-UG0-NNNN

Q: Does the MSK076C-0450-NN-M3-UG0-NNNN require an additional air blower during operation?

A: Under normal operating condition, the MSK076C-0450-NN-M3-UG0-NNNN motor can operate effectively without the need for an additional air blower. However if the motor is required to undergo high repitition operations, then an additional air blower might be required to regulate the operation of the motor.

Q: What type of encoder is in the MSK076C-0450-NN-M3-UG0-NNNN?

A: The MSK076C-0450-NN-M3-UG0-NNNN industrial motor features a Multi-turn absolute optical encoder. This encoder permites the absolute, indirect position recording within 4096 mechanical motor rotations. The encoder also preserves the absolute position of the motor axis even after the motor is off.

Q: What are the types of electrical conncetions on the MSK076C-0450-NN-M3-UG0-NNNN motor?

A: The MSK076C-0450-NN-M3-UG0-NNNN industrial motor features two major types of electrical connection; the power connection and the encoder connection. To ensure fast and error-free assembly and commissioning, standardized electrical cables should be used for the motor connections.

Q: Is the MSK076C-0450-NN-M3-UG0-NNNN sensitive to vibrations?

A: The roboust design of the MSK076C-0450-NN-M3-UG0-NNNN makes it resistant to mild vibrationas that does not exceed 10m/s2. The motor should not be exposed to extreme vibrations which can cause permanent damage on the motor.

Q: How should the MSK076C-0450-NN-M3-UG0-NNNN be mounted for operation?

A: The MSK076C-0450-NN-M3-UG0-NNNN motor sould be installed according to the B05 mounting design. This mounting design allows for the installation of the motor in any position.
