MSK076C-0300-NN-S1-UP0-NNNN

Name: MSK076C-0300-NN-S1-UP0-NNNN
Brand: Bosch Rexroth Indramat
Price: 346 USD
Availability: InStock
Rating: 4.6 (18 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

Unused Original Box Pricing Available!

In-Stock, Ships 3-5 Days

Current response time:

4 Minutes 17 Seconds

Rexroth's MSK076C-0300-NN-S1-UP0-NNNN servo motor is built for industrial automation. It features a rotor inertia of 0.00430 kgxm^2 and a maximum current of 32.4 A. Its four pole pairs ensure efficient performance.

Preparing your secure checkout page...

Description
Revisions
Specs
FAQ

Product Description

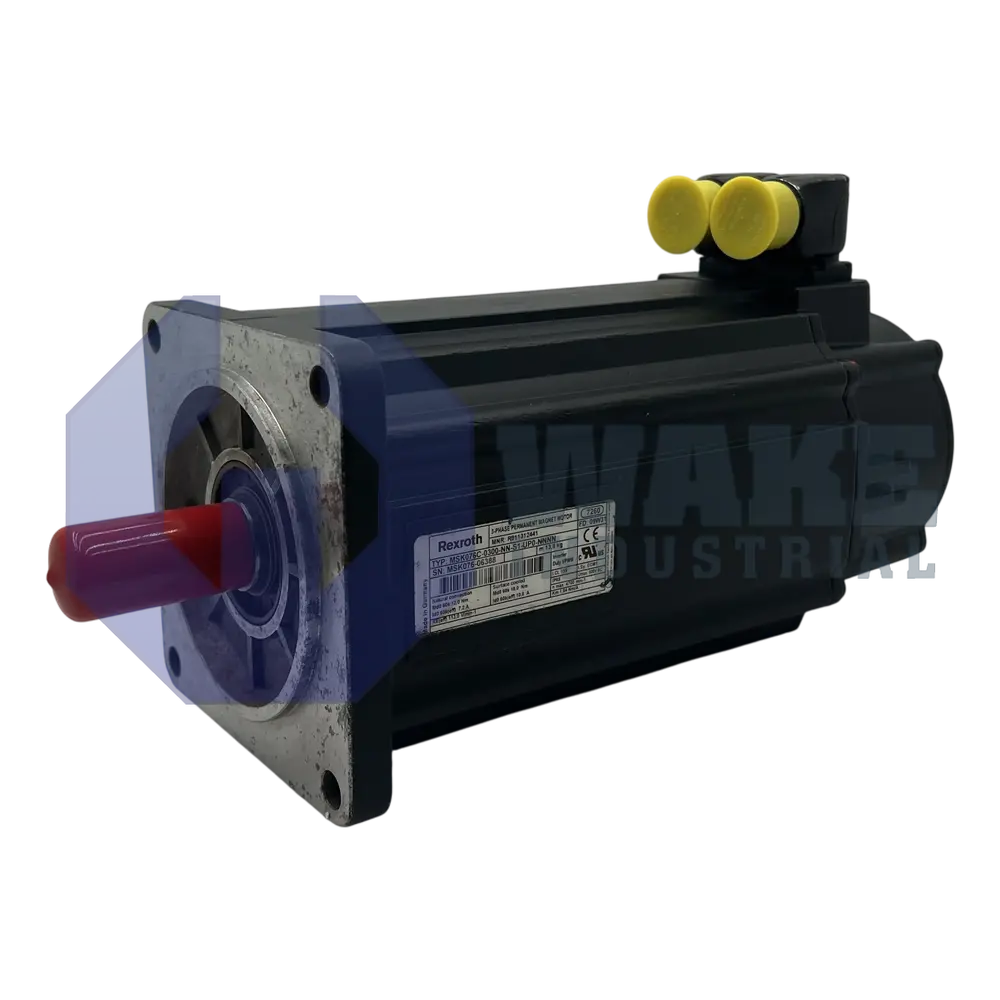

The model MSK076C-0300-NN-S1-UP0-NNNN is a robust servo motor manufactured by Rexroth. It is designed for high performance industrial automation applications. The motor combines precision, durability and compact size. This motor offers an excellent torque to inertia ratio and is built to meet rigorous industrial standards.

This MSK series motor has a continuous torque rating of 12 Nm at 60 K, and 13.5 Nm at 100 K. Its continuous current at standstill is rated at 7.2 A (60 K) and 8.1 A (100 K) with a maximum current of 32.4 A. The servo motor's maximum torque capacity reaches up to 43.5 Nm. This provides high overload capability for demanding tasks. It has a winding resistance of 1.85 ohms and an inductivity of 12.6 mH. The motor comes with four pole pairs. This motor operates at speeds up to 4,700 min-1 that makes it adaptable for a wide range of speeds and loads. The servo motor is equipped with a singleturn hiperface absolute encoder for precise control. The motor comes with a 240 degree rotatable electric plug for electrical connections.

The MSK076C-0300-NN-S1-UP0-NNNN servo motor includes a time constant of 25 minutes and a rotor inertia of 0.00430 kgxm^2. The motor is equipped with IP65 rated protection that ensures resistance to dust and water ingress in industrial environments. It weighs approximately 13.8 kg and operates within a sound pressure level of less than 75 dB. The servo motor has a maximum permissible vibration load of 10 m/s^2 in both axial and radial directions for encoders S1 and M1. The motor's insulation class is rated at 155 per DIN EN 60034-1. Wake Industrial offers this product with a one year replacement warranty.

MSK076C-0300-NN-S1-UP0-NNNN Technical Specifications

Product Type:	Servo Motor
Number of Pole Pairs:	4
Weight:	13.8 kg
Winding Inductivity:	12.6 mH
Torque Constant at 20 degrees C:	1.84 Nm/A
Thermal Time Constant:	25 minutes
Voltage Constant at 20 degrees C:	113 V/min-1
Holding Brake:	Not Available
Electrical Connection:	240 degree rotatable plug
Shaft Type:	Shaft with Keyways
Protection Class:	IP65
Encoder Type:	Singleturn Hiperface
Insulation Class:	155
Standstill Current (60 K):	7.2 Amp
Standstill Torque (100 K):	13.5 Nm

Frequently Asked Questions about MSK076C-0300-NN-S1-UP0-NNNN

Q: What is the connectivity option for the MSK076C-0300-NN-S1-UP0-NNNN servo motor?

A: The MSK076C-0300-NN-S1-UP0-NNNN is equipped with a 240-degree rotatable electric plug. This allows for flexible electrical connections in various industrial setups. It ensures easy installation and maintenance.

Q: What type of protection does the MSK076C-0300-NN-S1-UP0-NNNN motor have?

A: This servo motor is IP65 rated, meaning it is resistant to dust and water ingress. This makes it suitable for harsh industrial environments. It ensures long-lasting durability.

Q: What is the continuous torque rating of the MSK076C-0300-NN-S1-UP0-NNNN motor?

A: The motor provides a continuous torque rating of 12 Nm at 60 K and 13.5 Nm at 100 K. This ensures high performance in demanding industrial automation tasks.

Q: How does the MSK076C-0300-NN-S1-UP0-NNNN handle overload conditions?

A: The motor has a maximum torque capacity of 43.5 Nm, offering excellent overload capability. This feature supports intensive applications and ensures reliable operation under heavy loads.

Q: What are the environmental specifications for the MSK076C-0300-NN-S1-UP0-NNNN motor?

A: This motor operates within a sound pressure level of less than 75 dB, reducing noise in industrial settings. It also withstands vibration loads of up to 10 m/s^2 in axial and radial directions.

Internal Product Review

‘‘The Rexroth MSK076C-0300-NN-S1-UP0-NNNN servo motor excels in demanding industrial applications with its 43.5 Nm maximum torque and IP65 protection. The 240-degree rotatable plug enhances installation flexibility while its 75 dB sound level ensures quieter operation. Its precision makes it a reliable choice for automation.’’
