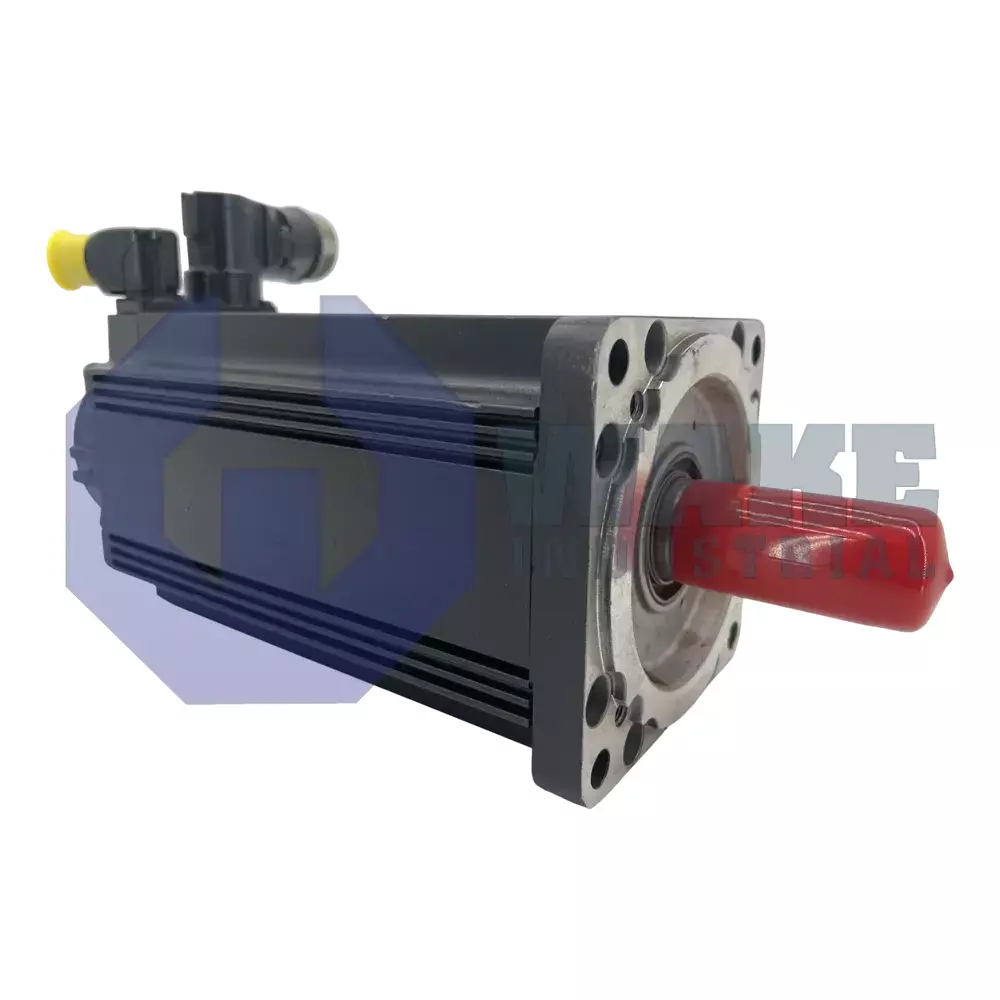

MSK071D-0200-NN-S2-UP0-RNNN

Product Description

Bosch Rexroth designs and develops cutting-edge industrial automation equipment and accessories. The items are offered in a wide range of power and technical specifications.

The MSK071D-0200-NN-S2-UP0-RNNN model is designed according to the state-of-the-art to make revolutionary improvements in the automated drive systems. The device is a synchronous servo motor used in industrial sectors including printing, packaging, foodstuff processing, and robotics. The MSK071 synchronous servo motor when operated at a temperature of 20 degree celsius offers a constant torque of 2.63 Nm per Ampere with a voltage constant of 162.0 V per 1000 min. The model performs with its 4 pole pairs and a winding inductance of 14.2 mH. The servo motor requires a current of 32.8A to provide a torque of 66 Nm during peak operation. The moment of inertia of the rotor during continuous operation is measured to be 0.00230 kg*m-square. The MSK071 synchronous servo motor is engineered to operate with a sound pressure level <75 dB at the speed of 3,200 revolutions per minute. The servo motor has a mass of 18 kg and requires careful handling during transportation and installation. The model provides a long and maintenance-free life owing to its brushless design.

The model MSK071D-0200-NN-S2-UP0-RNNN is used in applications that require low maintenance and provide high precision and accuracy owing to the optical encoder system. The model uses a single-turn optical encoder with EnDat 2.1 communication type. The optical encoder has a high-resolution operational control with its 2048 incremental steps and 1Vss output signal. The optical encoder requires a supply voltage in the range of 3.6 - 14 V and maximum current consumption of 150 mA. The maximum encoder speed for this model is 15,000 signals per minute. You can easily get this device (MSK071D-0200-NN-S2-UP0-RNNN) from Wake Industrial now.
