MSK060B-0300-NN-S1-UG1-NNNN

Name: MSK060B-0300-NN-S1-UG1-NNNN
Brand: Bosch Rexroth Indramat
Price: 402 USD
Availability: InStock
Rating: 4.4 (33 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911307209

Unused Original Box Pricing Available!

In-Stock, Ships 3-5 Days

Current response time:

4 Minutes 56 Seconds

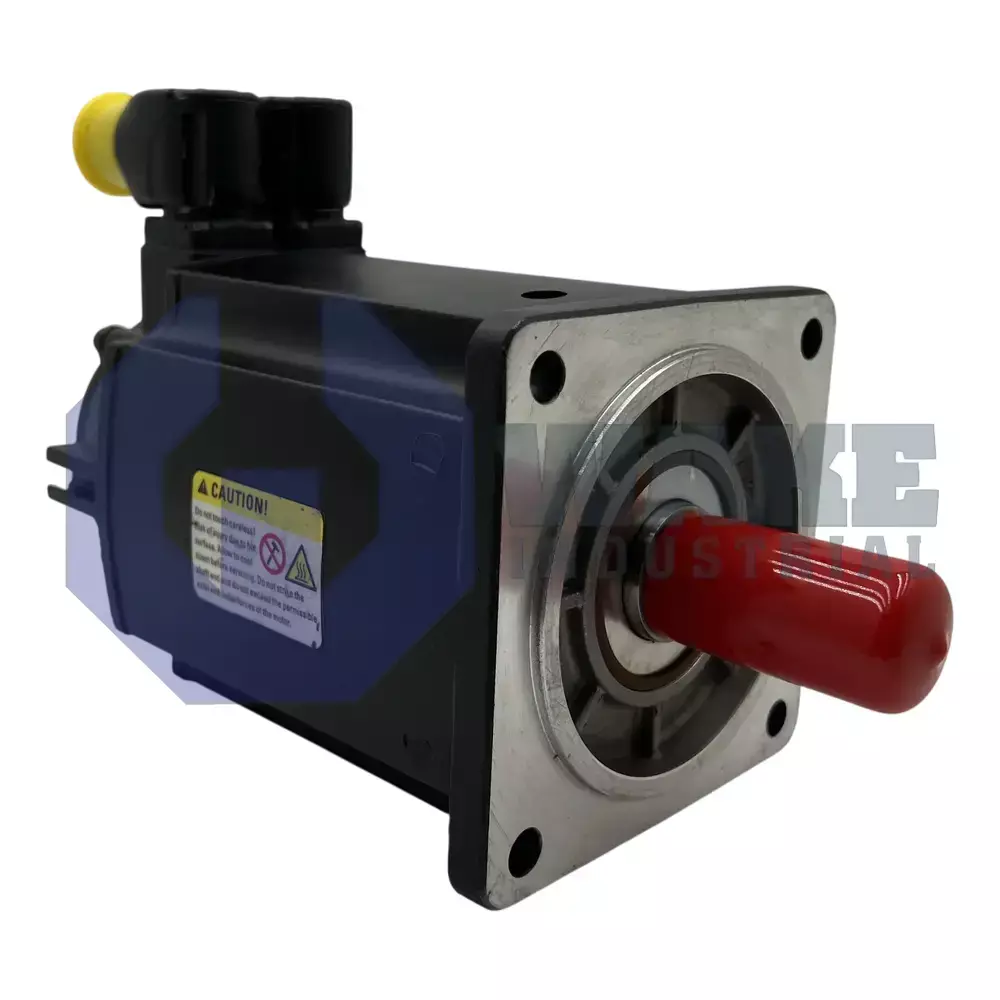

The MSK060B-0300-NN-S1-UG1-NNNN is manufactured by Rexroth Indramat Bosch as part of the MSK Servo Motor Series. It features a continuous torque of 5.5 Nm and a continuous current of 3.3 A. It also displays a maximum torque of 15.0 Nmand a maximum current of 12.0 A and a winding inductive of 73,000 mH

Preparing your secure checkout page...

Warranty

Wake Industrial Warranty

Shipping

Payment

Surplus

Have a MSK060B-0300-NN-S1-UG1-NNNN to sell?

To Speak to a sales representative for pricing and lead time:

Phone

1-888-551-3082

International

1-919-443-0207

sales@wakeindustrial.com

Description
Revisions
Specs
FAQ

Product Description

Bosch Rexroth offers services for the construction and enhancement of various industrial components and equipment. Customers can choose from a variety of high-performance servo motors, drive controllers, and frequency converters offered by the company.

The MSK060B-0300-NN-S1-UG1-NNNN model provides a continuous torque of 8Nm at 60k, 8.8Nm at 100k, and 12Nm at standstill. Increased linear expansion in 100K operation can have a negative impact on motor efficiency. When planning the systems, it is recommended that 60K data be used. The maximum operating speed of the MSK060 servo motor is 4900 revolutions per minute. The discharge capacity of the component is 2.1nF with 4 polar pairs and a thermal time constant of 4 minutes. During operation, the ambient temperature should be maintained between 0 to +40 degree Celsius by using natural or forced convection to transfer heat. The continuous current of the model is 4.8A at 60 revolutions per millisecond, 5.3A at 100 revolutions per millisecond, and 7.2A at a standstill. The MSK060 servo motor uses an optical encoder with a singleturn hiperface and an increment of 128. The framework is designed with an electrical plug that can be rotated at a 240-degree angle.

The model MSK060B-0300-NN-S1-UG1-NNNN features a standard plain shaft with a diameter of 24mm and a shaft sealing ring. The model weighs 5.7 kg and has dimensions of 156.5mm (height), 116mm (depth), and 231mm (length). The model is equipped with an electronically released holding brake. The model's maximum operating torque and current are 24Nm and 19.2A, respectively. The model (MSK060B-0300-NN-S1-UG1-NNNN) is protected with a rating of IP65 according to IEC 60529 and insulated with a rating of 155 according to the DIN EN 60034-1. Wake Industrial provides a one-year replacement warranty that is redeemable in the event of a defect.

MSK060B-0300-NN-S1-UG1-NNNN Technical Specifications

Continuous Current at Standstill 100 K:	3.3 A
Insulation Class:	155
Standstill torque (100 K):	5.5 Nm
Protection Class:	IP65
Standstill Current (60 K):	3 amp
Maximum Torque:	15 Nm
Maximum Current:	12 amp
Winding Resistance:	7.3 ohms
Winding Inductivity:	73 Mh
Max. Speed:	4800 rpm

Frequently Asked Questions about MSK060B-0300-NN-S1-UG1-NNNN

Q: What is the discharge capacity and thermal time constant of the MSK060B-0300-NN-S1-UG1-NNNN?

A: The component has a discharge capacity of 2.1nF and a thermal time constant of 4 minutes. This ensures effective energy discharge and thermal stability during operations.

Q: What is the advised ambient temperature range for the MSK060B-0300-NN-S1-UG1-NNNN during operation?

A: The ambient temperature should be between 0 to +40 degree Celsius, maintained through natural or forced convection. Maintaining this temperature ensures optimal performance and longevity.

Q: Can you provide details on the encoder used in the MSK060 servo motor?

A: The motor uses an optical encoder with a singleturn hiperface and an increment of 128. This type of encoder is renowned for precision and accurate position feedback.

Q: What are the shaft specifications for the MSK060B-0300-NN-S1-UG1-NNNN model?

A: The model has a standard plain shaft with a diameter of 24mm and includes a shaft sealing ring. This design aids in ensuring a secure fit and protection against external contaminants.

Q: What protection and insulation ratings does the MSK060B-0300-NN-S1-UG1-NNNN model have?

A: The model is protected with a rating of IP65 according to IEC 60529 and insulated with a rating of 155 as per DIN EN 60034-1. These ratings affirm its durability and safety in demanding environments.
