MSK040C-0600-NN-S1-UG0-NNNN

Name: MSK040C-0600-NN-S1-UG0-NNNN
Brand: Bosch Rexroth Indramat
Price: 406 USD
Availability: InStock
Rating: 4.4 (33 reviews)

Straightforward Pricing: No Rush Fees, No Credit Card Fees

MPN: R911305623

Unused Original Box Pricing Available!

In-Stock, Ships Today

Current response time:

5 Minutes 15 Seconds

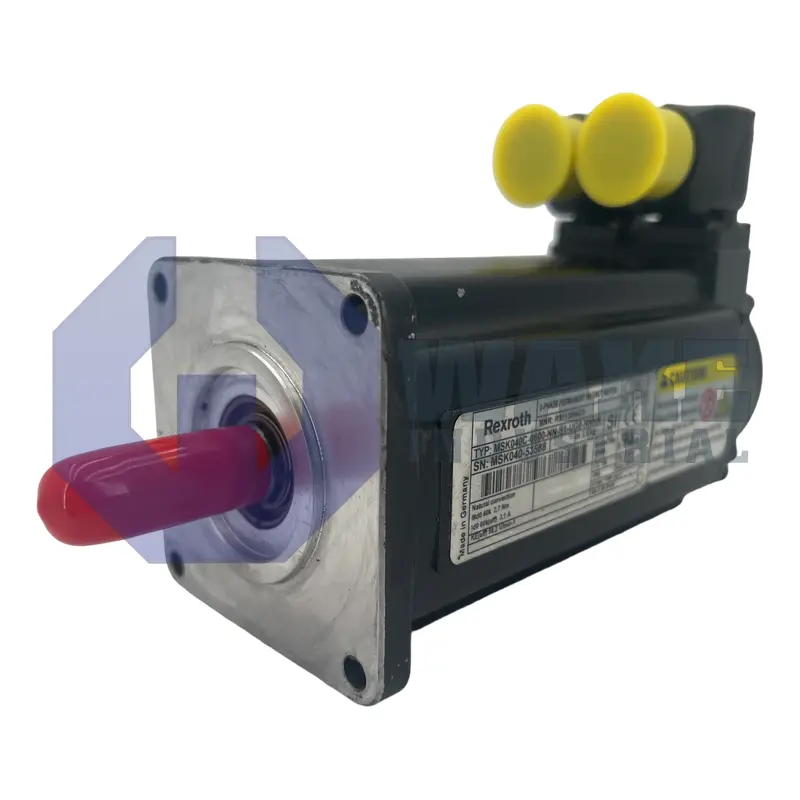

The MSK040C-0600-NN-S1-UG0-NNNN is a best-in-class synchronous servomotor launched by Bosch Rexroth Indramat. This device has a winding resistance of 3.9 Ohm at 20 °C. Its maximum rated current is 12.4 A. There are 4 pole pairs in the model.

Email

Phone

Part Number

+Add a message

Website

Preparing your secure checkout page...

Product Description

Bosch Rexroth’s reputation is from the manufacture of high-quality and customized products that are not only dynamic but also designed to be multi-purpose and function well in many fields. Their synchronous motors have undergone structural modification and improvement to increase efficiency and usability. One such model of the motors is the MSK040C-0600-NN-S1-UG0-NNNN which utilizes the natural cooling system. The mechanical and current technical information discussed below is for natural cooling only.

Following the instructions during operation mounting or even installation prevents damage to the motor, protects you and other users and ensures that MSK040C-0600-NN-S1-UG0-NNNN remains exceptionally durable.

That said, the MSK040C-0600-NN-S1-UG0-NNNN operates optimally when the ambient temperature of 0 degrees Celsius to 40 is maintained. The peak torque allowed is 8.1Nm and the maximum current is 12.4 A. If the motor is at a standstill, 60K, the continuous torque is 2.7Nm and the continuous current is estimated to be 3.1A. Should the motor be at standstill but 100K, the continuous current value will be unavailable, but the continuous torque will increase to 3.1 Nm. The winding inductivity of the MSK040C-0600-NN-S1-UG0-NNNN is 21.3 Nm while the leakage capacitance of the component is 2.0NF. If you keep the temperature at 20°C, the winding resistance will be 3.9 Ohms, the constant torque will be 0.95Nm/A and the constant voltage will be 58.2 V/min-1.

The speed of the MSK040C-0600-NN-S1-UG0-NNNN motor is 7500 min-1, the insulation class is F category EN 60034-1 and the protection degree is IP65. The constancy of the thermal time is 16 minutes while the moment of inertia without break is 0.00014 kg*m2. You may add the inertia brake if it is necessary.

MSK040C-0600-NN-S1-UG0-NNNN Technical Specifications

Continuous Current at Standstill 100 K:	4.7 A
Insulation Class:	155
Electrical Connection:	240 degree rotatable plug
Encoder Type:	Singleturn Hiperface
Weight :	3.6 kg
Torque Constant at 20 °C:	0.95 Nm/A
Standstill Torque (100 K):	3.1 Nm
Standstill current (60 K):	3.1 A
Maximum Torque:	8.1 Nm
Voltage Constant at 20 °C:	58.2 V/min-1

Frequently Asked Questions about MSK040C-0600-NN-S1-UG0-NNNN

Q: What is the optimal ambient temperature range for the MSK040C-0600-NN-S1-UG0-NNNN?

A: The MSK040C-0600-NN-S1-UG0-NNNN performs best between 0 degrees Celsius and 40 degrees Celsius. Ensuring this temperature range helps maintain the longevity and efficiency of the device.

Q: What are the peak torque and maximum current specifications for this model?

A: The MSK040C-0600-NN-S1-UG0-NNNN has a peak torque of 8.1 Nm and a maximum current of 12.4 A. These specifications make it suitable for applications requiring robust performance.

Q: Can you specify the winding inductivity and leakage capacitance of the MSK040C-0600-NN-S1-UG0-NNNN?

A: The winding inductivity is 21.3 Nm and the leakage capacitance is 2.0 nF. Both these parameters are critical for understanding the motor's electrical behavior.

Q: What is the maximum speed of the MSK040C-0600-NN-S1-UG0-NNNN motor?

A: The motor's maximum speed is 7500 min-1. This high speed is a testament to the motor's powerful capability in various applications.

Q: How long is the constancy of the thermal time of the MSK040C-0600-NN-S1-UG0-NNNN and what is its moment of inertia?

A: The constancy of the thermal time is 16 minutes, with a moment of inertia of 0.00014 kg*m2. These factors are pivotal in determining the motor's response time and stability during operations.
