MKD112D-024-GG0-AN

Product Description

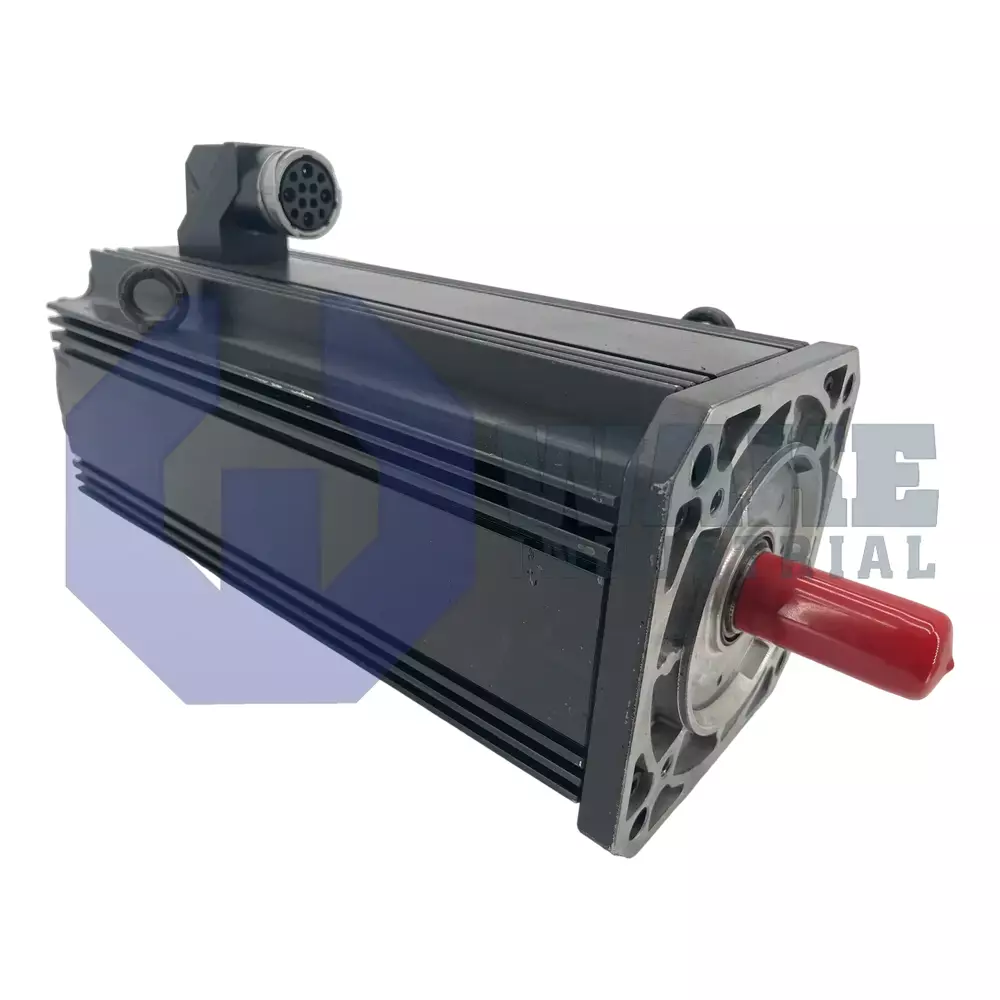

The MKD112D-024-GG0-AN is an AC MKD synchronous motor designed and assembled by Bosch Rexroth. Its weight is 45 kg and has a characteristic speed of 3,000 revs/min. This motor comes equipped with four (4) pole pairs and has a winding inductance rating of 5.65 mH. Its rated speed has a value of 2,000 revs/min. The highest attainable current of the MKD112D-024-GG0-AN is rated at 142.2 Amps. At 60K operation and natural convective cooling method, the continuous torque of this AC servo motor has a value of 48 Nm. While at 100K operation and similar cooling method, it features a continuous torque rating of 57 Nm at standstill.

The winding resistance of the MKD112D-024-GG0-AN AC motor at a temperature of 20 degrees C is 0.35 Ohms. In theory, this motor features a maximum torque of 187 Nm. Its rotor inertia is 0.0350 kgm² and its maximum speed is rated at 3000 revs/min. The acceptable transport and storage temperature levels range between -20 ^oC to +80 ^oC. While operating the MKD112D-024-GG0-AN, the allowable environmental temperature range is between 0 – 40 ^oC. In addition, the protection category of this high-performing servo motor is IP 65, which depicts its protection from dust penetration, shock and jet water.

At 60K housing overtemperature, the thermal time constant of the MKD112D-024-GG0-AN is 90 mins. Also, at 100K winding overtemperature, the thermal time constant is 90 mins, provided both operations utilize a natural air-cooling mechanism. The maximum height of installation for this equipment is 1000 meters above sea level. This model of the Rexroth MKD motors conforms with the insulation class F, as per DIN VDE 0530 – part 1. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
