MHP112C-035-HP0-ANNNNN

Product Description

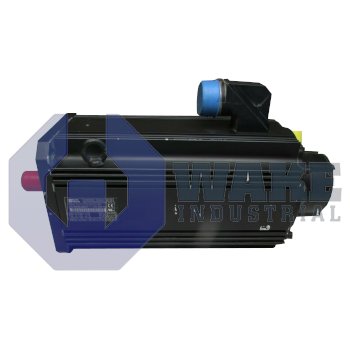

The Bosch MHP112C-035-HP0-ANNNNN is a Rexroth MHP synchronous motor for PowerDrive series drives. These servo drives can be used for industrial applications including robots, textile machines and printing machines. Some of the advantages of MHP series motors include high reliability, maintenance-free operation, easy machine mounting and simple cabling. MHP series motors are available in liquid cooled, surface cooled and convection cooled varieties. MHP motors use a permanent-magnet with electronic commutation. Motor size of the MHP112C-035-HP0-ANNNNN is 112 and the length of the motor is C. Code for the motor winding is 035. Incremental encoder with 2048 increments is part of the standard motor package. The driven shaft has key according to DIN 6885. The driven shaft also has a sealing ring. Holding brake is not available on the motor. The output direction of power connection is to side A of the motor.

Location of power connector is on top of the motor. The MHP112C-035-HP0-ANNNNN uses natural convection for cooling. Operating and storage temperature ranges for the motor are 0 to 40 degrees Celsius and -20 to 80 degrees Celsius respectively. The maximum recommended elevation for motor installation is 1000 meters above sea level. Housing of the motor has IP65 protection rating. Housing of the motor is coated in prime black coat (RAL 9005). Weight of the MHP112C-035-HP0-ANNNNN is 48 kilograms. The characteristic motor speed is 3000 RPM and the base motor speed is 2500 RPM. Nominal motor current and voltage are 9.4 Amps and 303 Volts respectively. The peak motor current is 101.7 Amps. The nominal frequency is 167 Hertz. Resistance of winding on the MHP112C-035-HP0-ANNNNN is 0.15 Ohms and the rotary field inductance is 2.1 millihenry. This unit can be shipped globally with a one-year warranty period from Wake Industrial.
