MHD112D-027-PG0-RN

Product Description

Bosch Rexroth is a forerunner in the manufacturing of high-quality devices such as synchronous motors, spindle motors, inverter modules, control sections, and drive controllers.

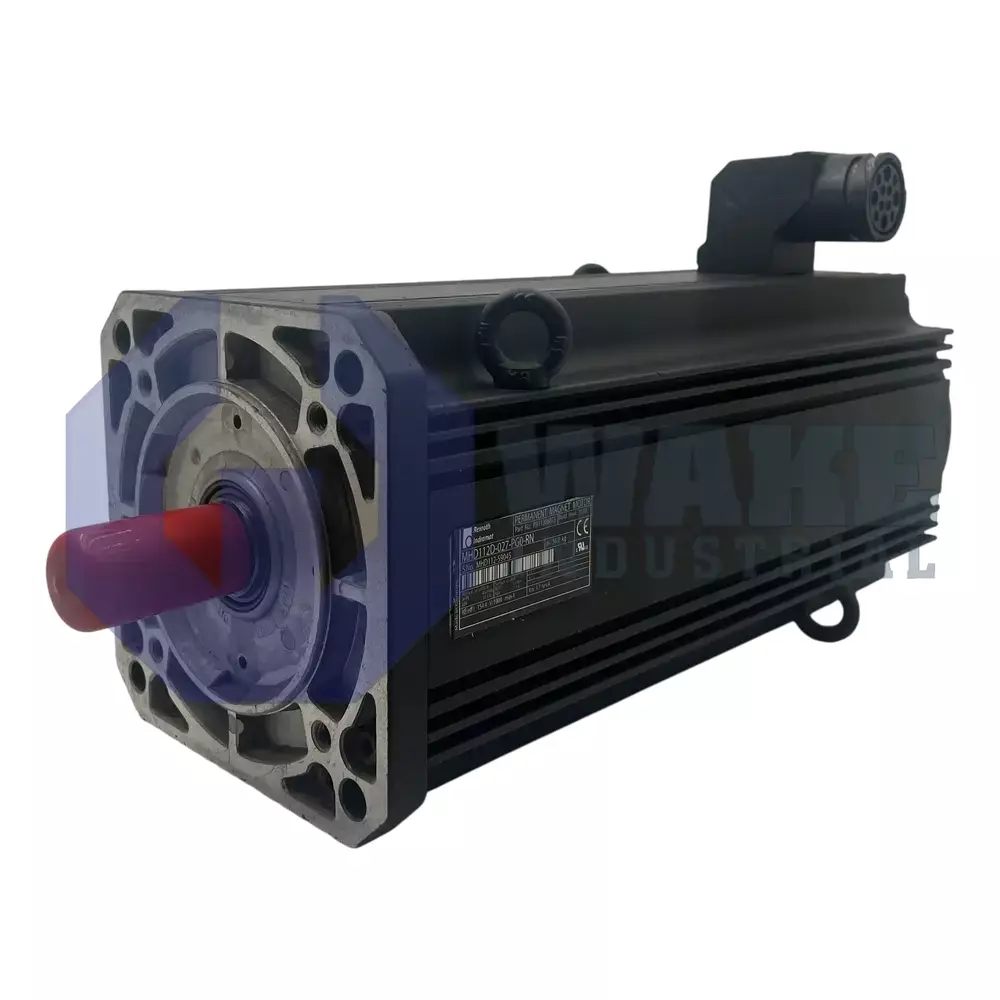

The MHD112D-027-PG0-RN model has a small physical size and weighs 56 kilograms and must be operated within a temperature range of 0 to 40 degree centigrade. The motor contains a plain output shaft and can rotate at a maximum speed of 3000 RPM with a peak current consumption of 142.2 A. The MHD112D synchronous motor has a rated torque of 41.5 Nm, rated performance of 11.3 with the rated current, and voltage consumption of 20.7 A and 331 V respectively. The torque constant of the model is 1.7 Nm/A while the voltage constant has a value of 154.5 V/1000min^-1. The motor is equipped with a multiturn absolute encoder and has a power connection on the right side of the motor housing. The model can be installed at a maximum height of 1000 meters above sea level and should be relocated within a temperature range of -20 to +80 degree centigrade. At a temperature of 100 K and during natural cooling the MHD112D synchronous motor is expected to generate a continuous torque of 72 Nm and requires a continuous current of 47.4 at a standstill operation.

The model MHD112D-027-PG0-RN contains a winding resistance of 0.35 at 20 degree centigrade and a winding inductivity of 5.65 mH. This synchronous motor contains a housing that is IP68 rated and contains an insulation class of F. A highly trained person should operate and install this motor (MHD112D-027-PG0-RN) to achieve its full functionality and prevents any mishap. The number of pole pairs for this model is 4 while the rotor has a moment of inertia of 350 x 10^-4 kgm².
