Product Description

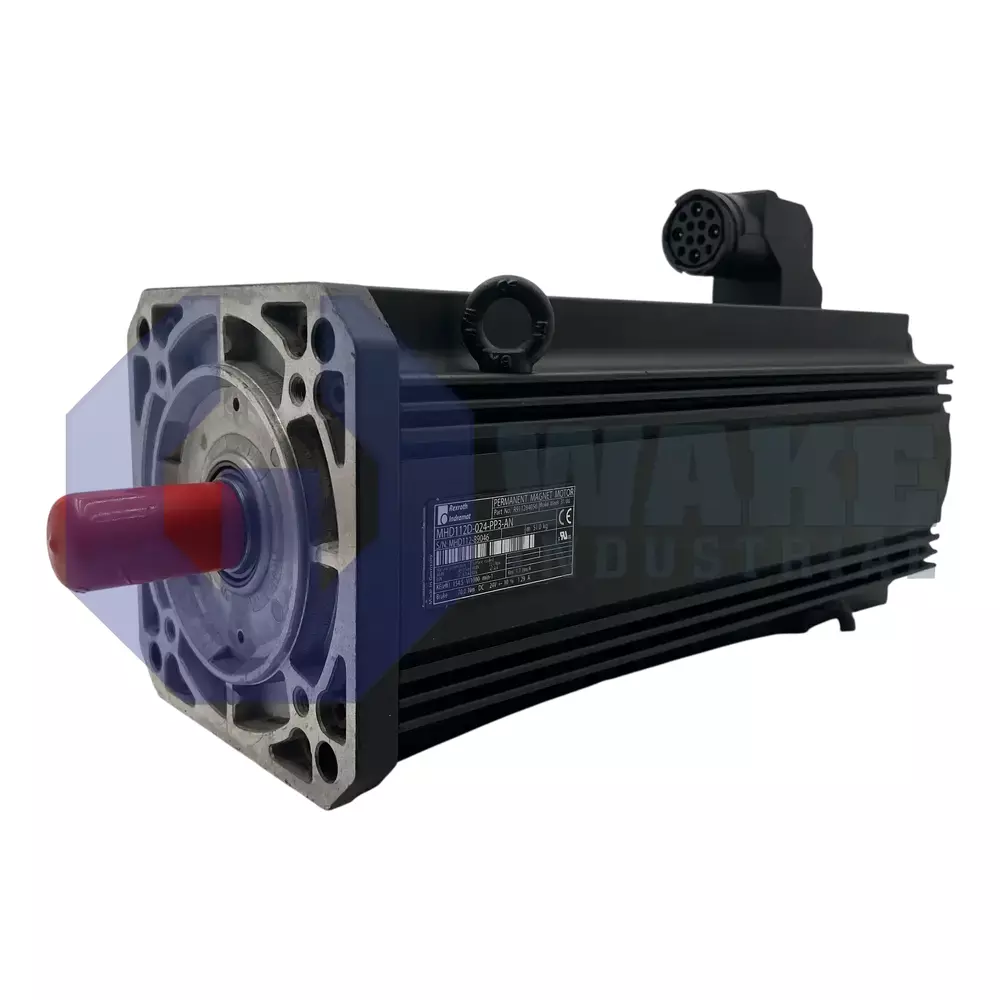

The MHD112D-024-PP3-AN is an advanced servo motor. It is developed by Bosch Rexroth specifically for high-performance commercial and industrial applications. The motor is deployed with a compatible drive controller. The controller performs two important functions: it controls motor speed and position, and provides electrical power to the motor. The motor includes a sensor known as an encoder that measures speed and position. These measured values are shared with the controller through a feedback cable that connects to a feedback connector on the motor housing. The controller supplies motor power through a separate power cable that connects to a power connector on side A of the housing. The MHD112D-024-PP3-AN is a flange mounted motor. Four holes on the flange allow secure mounting through appropriately sized mounting screws. Size of the flange on the MHD112D-024-PP3-AN is 192 millimeters.
The MHD112D-024-PP3-AN has a centering diameter of 130 millimeters. Length of the motor housing is 526 millimeters. The motor shaft diameter is 32 millimeters and approximately 60 millimeters of the motor shaft are available outside the motor housing. The shaft on the MHD112D-024-PP3-AN motor includes a key. Holding brake provided on the motor is rated for 70 Nm and weighs 3.8 kilograms. Holding brakes rated for 22 Nm and 32 Nm are also available for MHD112D motors. An integrated multiturn encoder enables digital servo feedback. Housing of the MHD112D-024-PP3-AN is suited to two cooling methods that are natural convection and surface cooling. The preferred operating temperature is 0 to 40 degrees Celsius. The permitted range of operating altitudes is 0 to 1000 meters. Operation of the MHD112D-024-PP3-AN motor outside ambient conditions recommended by Bosch leads to output current derating.
