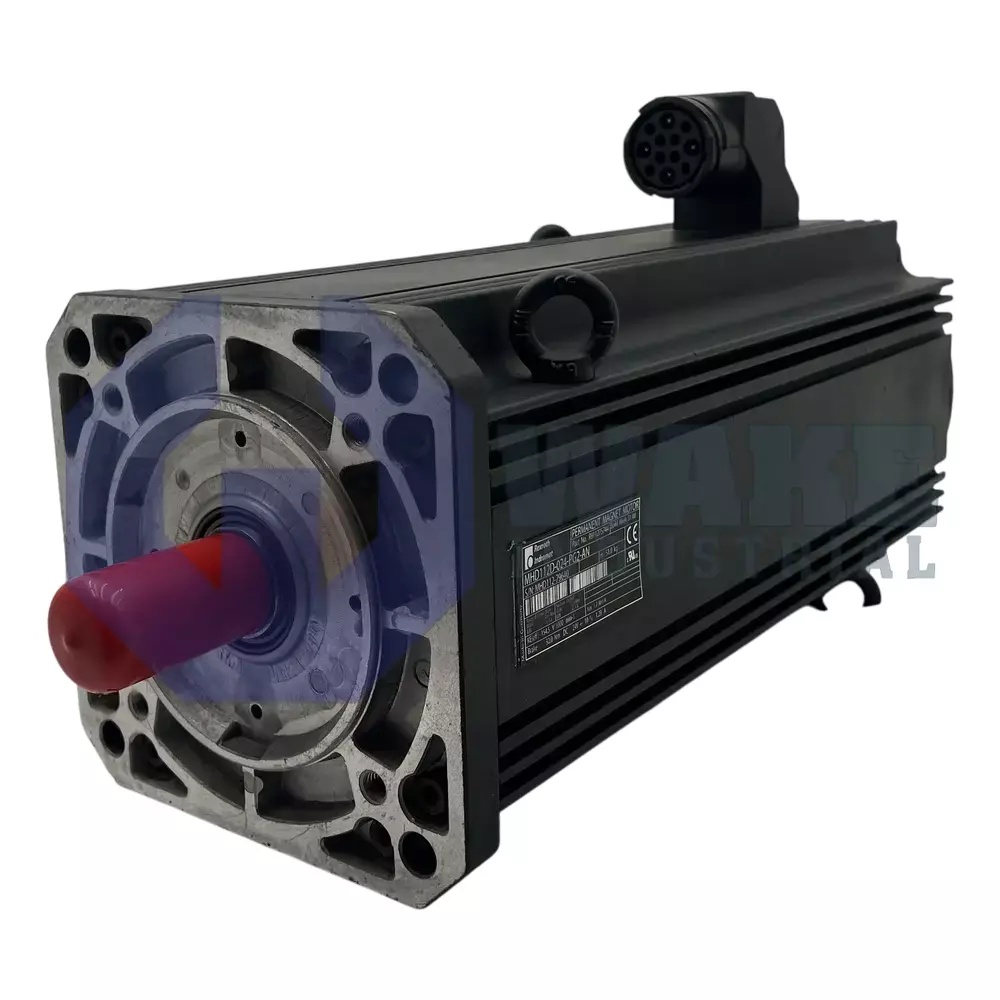

MHD112D-024-PG2-AN

Product Description

The Bosch Rexroth MHD112D-024-PG2-AN is a MHD series servo motor. It is designed for industrial applications that include machine tools, food machines, packaging machines and automation. According to the type code, the motor frame size is 112 and its frame length is D. The motor winding code, according to the type code, is 024. The MHD112D-024-PG2-AN is a maintenance-free motor that can be installed in adverse operating environments and in any desired position. It is made with special permanent magnets and features low inertial mass. The main components of the MHD112D-024-PG2-AN are a stator, a rotor, bearings, shaft sealing ring and an encoder. The motor housing and able connections are completely sealed. As a result the motor is IP65 rated and is completely dust proof. The ideal ambient temperature for motor operation is 0 to 40 degrees Celsius.

Housing of the MHD112D-024-PG2-AN is suited to natural convection or surface cooling.  The motor gets power from a drive controller. The power cable from the controller connects to a power connector on side A. Other motor features include a plain shaft with sealing ring, a holding brake and digital servo feedback with an integrated encoder. The holding brake on the MHD112D-024-PG2-AN is an electrically-releasing brake. The brake releases the motor shaft on application of a 24 Volts DC signal. During operation, the brake draws 0.93 Amps current. The brake takes approximately 15 milliseconds to engage and approximately 115 milliseconds to disengage. Mass of the brake is 2.4 kilograms. Centering diameter and housing length of the motor are 130 millimeters and 526 millimeters respectively. The motor insulation class is F. The motor housing is coated with a black coat (RAL 9005).
